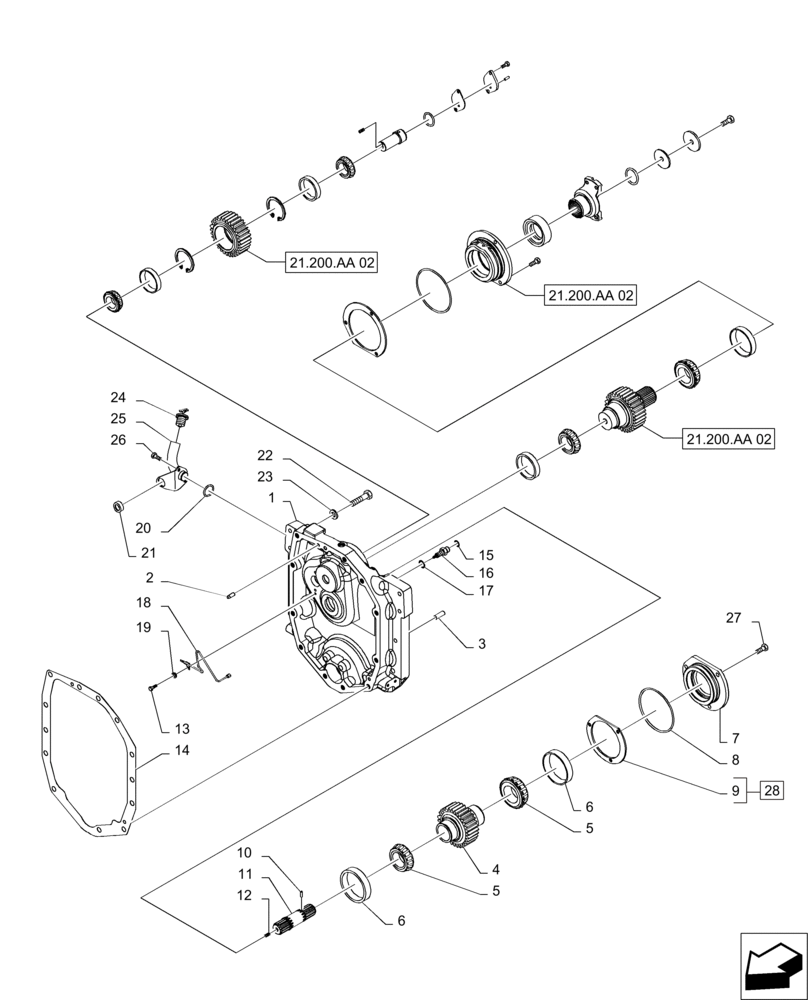

Запчасти Case IH MAGNUM 235 (21.200.AA[01]) - TRANSMISSION DROP BOX (21) - TRANSMISSION

1

87640603

HOUSING

1шт.

2

375362R1

PIN,12.69mm OD x 34.8mm L

2шт.

3

837-20040

DOWEL,M20 x 40

2шт.

4

87740760

GEAR SHAFT

1шт.

5

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

2шт.

6

105496H

BEARING CUP,97.63mm OD x 19.45mm W

2шт.

7

226188A3

CAGE

1шт.

8

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

9

341210A1

SHIM,0.152mm Thk

0.152mm

2шт.

9

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

0.178mm

2шт.

9

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

0.203mm

2шт.

9

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

0.356mm

2шт.

9

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

0.635mm

2шт.

10

38-3605

PIN,3/32" x 5/16", Coiled

1шт.

11

282726A1

SHAFT

1шт.

12

284151A1

SET SCREW,M10 x 1.5 x 10mm

1шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

14

230760A2

GASKET,0.79mm Thk

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

93105C1

UNION

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

259979A2

TUBE

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

21

248-2181

GROMMET,1" ID x 3/8" Groove Dia

1шт.

22

828-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

8шт.

23

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

24

279640A1

CAP

1шт.

25

295087A1

TUBE

1шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

27

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

3шт.

28

275219A2

SHIM KIT

Incl 9

1шт.
