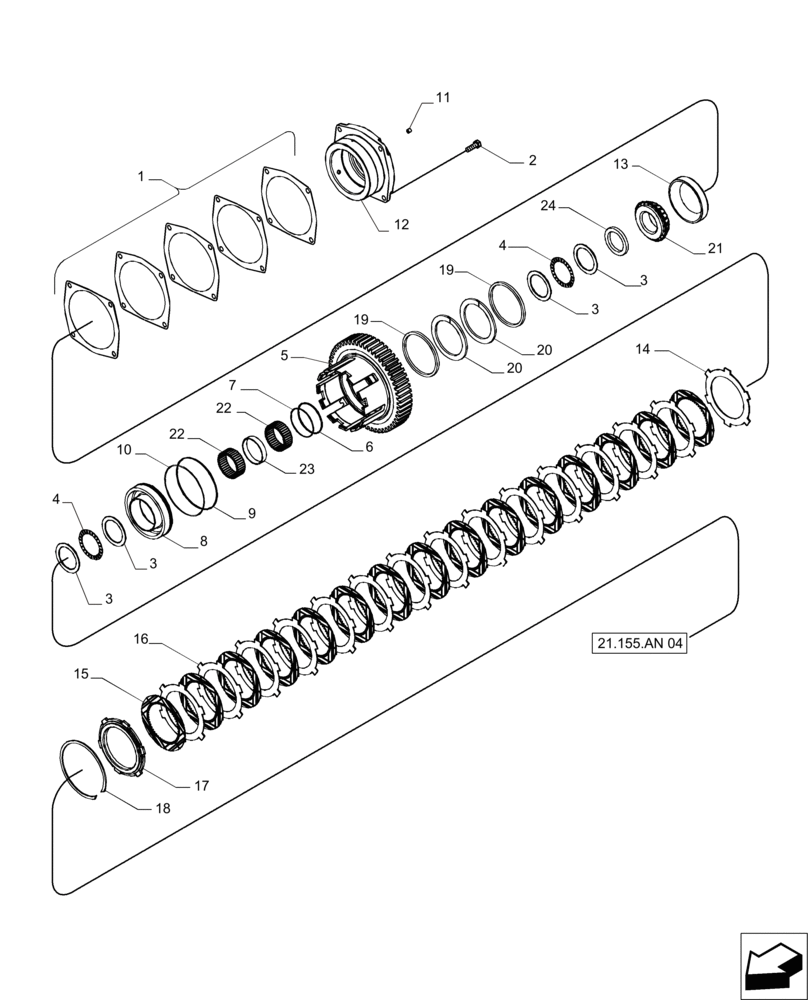

Запчасти Case IH MAGNUM 235 (21.155.AN[05]) - RANGE TRANSMISSION, COUNTERSHAFT (21) - TRANSMISSION

1

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

2шт.

1

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

2шт.

1

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

2шт.

1

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

2шт.

1

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

2шт.

2

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

3

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

4шт.

4

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

2шт.

5

87439841

GEAR

1шт.

6

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

1шт.

7

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

8

242491A5

PISTON

1шт.

9

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

10

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

11

1345888C1

PLUG

1шт.

12

87435631

CAGE

1шт.

13

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

14

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

1шт.

15

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

15шт.

16

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

14шт.

17

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

18

1285996C1

SNAP RING,151mm OD, Internal

1шт.

19

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

2шт.

20

297418A2

SEALING RING,Locking, 105.68mm ID x 113.05mm OD x 3.68mm Thk

2шт.

21

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

1шт.

22

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

2шт.

23

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

1шт.

24

1286038C2

SPACER

1шт.
