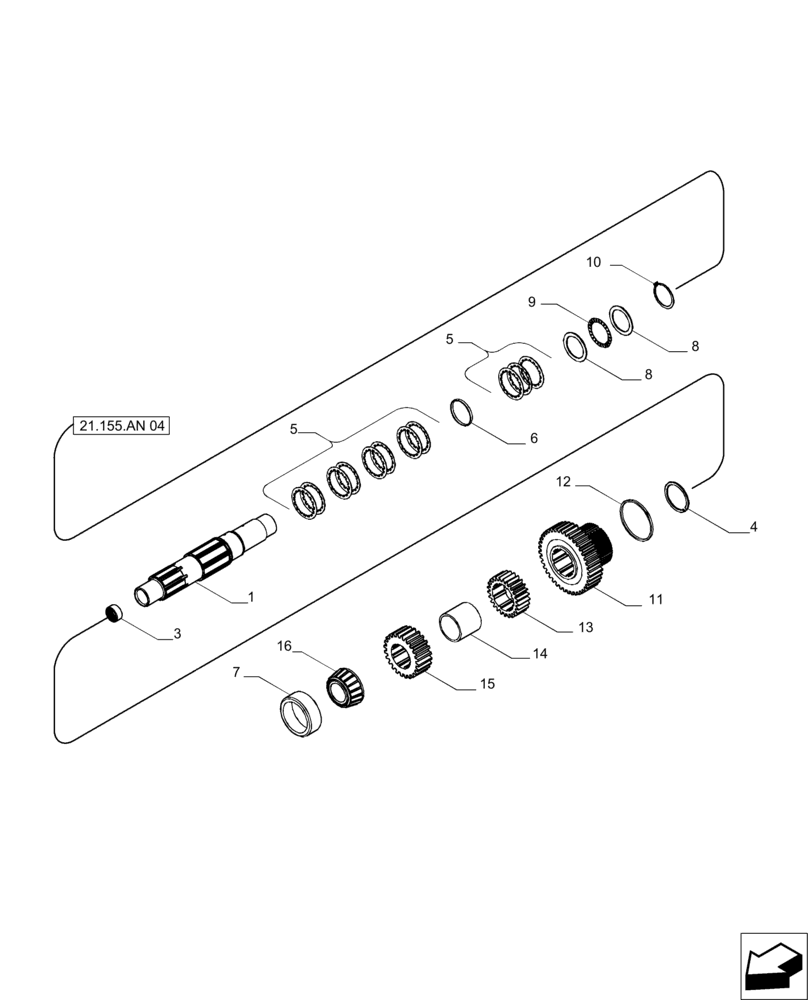

Запчасти Case IH MAGNUM 235 (21.155.AN[04]) - RANGE TRANSMISSION, COUNTERSHAFT (21) - TRANSMISSION

1

47459750

COUNTERSHAFT

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

3шт.

3

1277191C1

NEEDLE BEARING

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

1шт.

5

87425389

BELLEVILLE SPRING

11шт.

6

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

1шт.

7

253486A1

BEARING CUP,103.2mm OD x 36.41mm W

1шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

1шт.

10

87639535

SNAP RING,Ext, #250, 59.842mm ID

1шт.

11

1285978C1

PINION

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

13

220057A1

GEAR

1шт.

14

47459738

SPACER

1шт.

15

47459334

GEAR

1шт.

16

253485A1

ROLLER BEARING,49.22mm ID x 44.39mm W

1шт.
