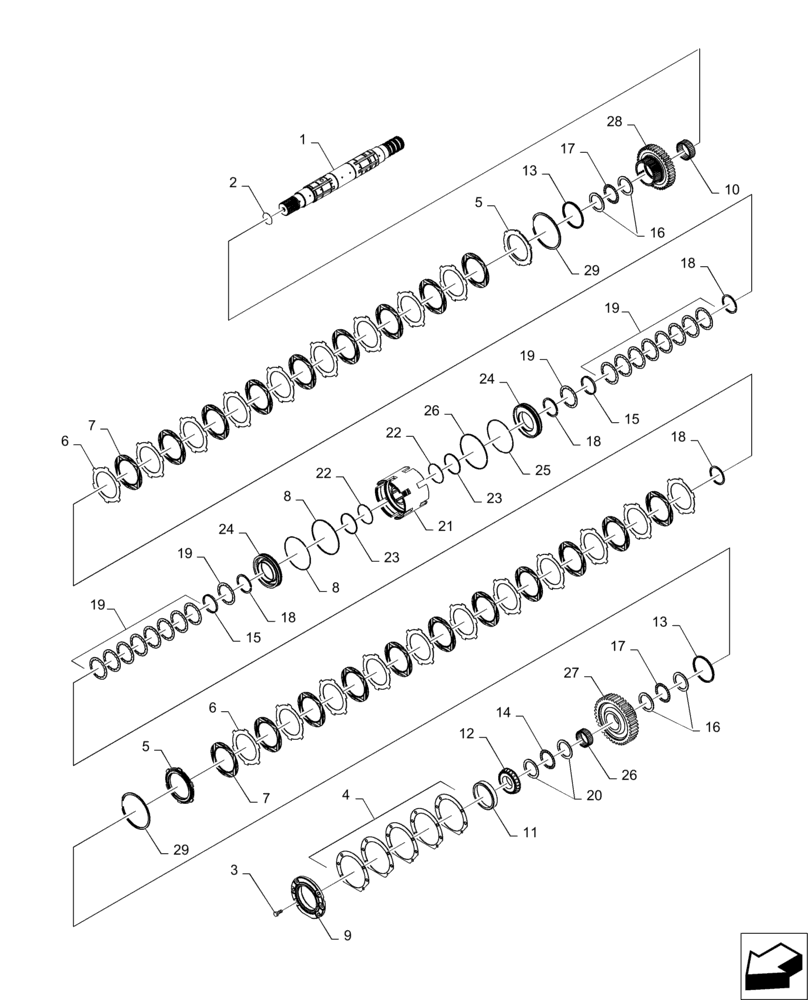

Запчасти Case IH MAGNUM 235 (21.155.AN[03]) - SPEED TRANSMISSION, OUTPUT SHAFT REAR CLUTCH (21) - TRANSMISSION

1

87328867

SHAFT

1шт.

2

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

3

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

4

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

2шт.

4

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

2шт.

4

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

2шт.

4

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

2шт.

4

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

2шт.

5

1342645C3

CLUTCH DISC

CLUTCH DISK

2шт.

6

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

22шт.

7

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

22шт.

8

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

9

1286001C4

CAGE

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING CUP, 110mm OD; Incl in 30

1шт.

12

1286021C1

ROLLER BEARING,50.01mm ID x 21.99mm W

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

14

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

1шт.

15

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

18

87639535

SNAP RING,Ext, #250, 59.842mm ID

4шт.

19

87425389

BELLEVILLE SPRING

18шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

21

87581464

CARRIER

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

24

86987597

PISTON

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

26

1285997C1

NEEDLE BEARING,57.14mm ID x 66.73mm OD x 38.1mm W

1шт.

27

1285982C1

DRIVEN GEAR

1шт.

28

86987609

GEAR

1шт.

29

1285996C1

SNAP RING,151mm OD, Internal

2шт.

30

84356191

Incl 11, 12; Not Illustrated

TAPERED BEARING,110x22

1шт.
