Запчасти Case IH MAGNUM 235 (21.155.AN[02]) - SPEED TRANSMISSION, OUTPUT SHAFT FRONT CLUTCH (21) - TRANSMISSION

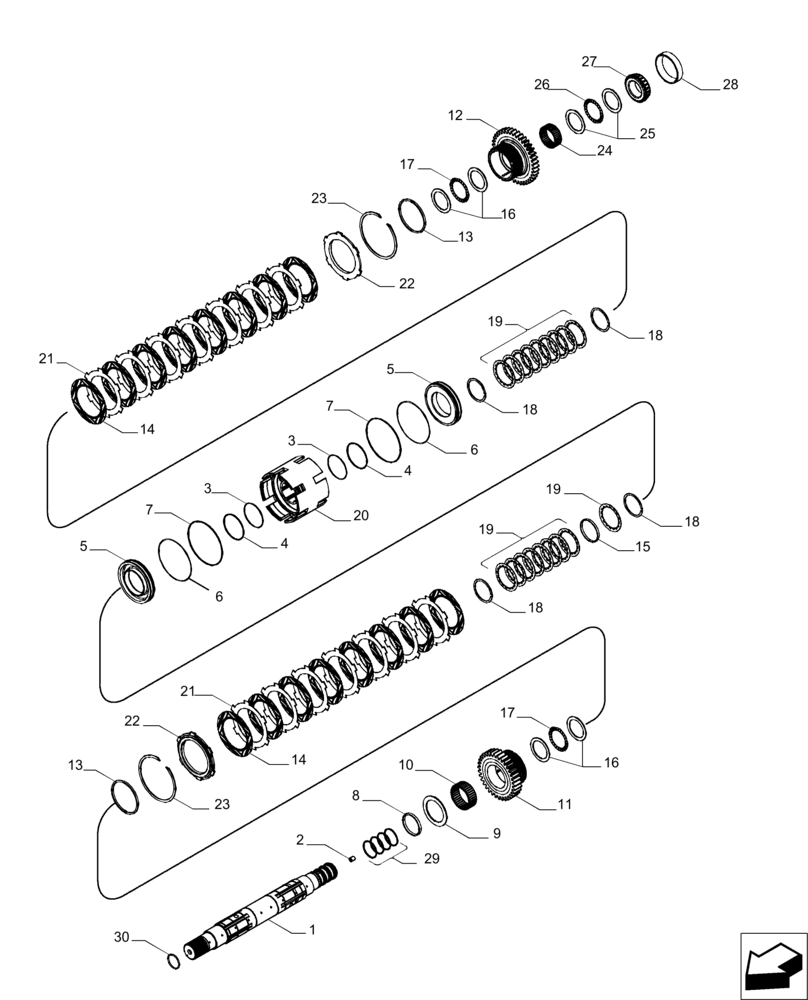

Схема запчастей Case IH MAGNUM 235 - (21.155.AN[02]) - SPEED TRANSMISSION, OUTPUT SHAFT FRONT CLUTCH (21) - TRANSMISSION
7
13
14
20
29
10
18
17
18
23
1
19
8
11
26
25
5
19
3
12
6
4
16
23
7
14
17
30
18
27
21
9
18
21
2
6
19
13
5
4
28
24
22
3
16
22
15

Артикул

Название

Примечание

Количество

1

87328867

SHAFT

1шт.

2

187516A1

PLUG,Expansion, 12mm

3шт.

3

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

4

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

5

86987597

PISTON

2шт.

6

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

7

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

11

1285985C1

GEAR

1шт.

12

1285987C1

PINION

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

14

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

16шт.

15

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

1шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

18

87639535

SNAP RING,Ext, #250, 59.842mm ID

4шт.

19

87425389

BELLEVILLE SPRING

18шт.

20

87581466

CARRIER

1шт.

21

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

16шт.

22

1342645C3

CLUTCH DISC

CLUTCH DISK

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

2шт.

24

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

1шт.

25

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

26

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

1шт.

27

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

1шт.

28

114979H

BEARING CUP,92mm OD x 19.845mm W

1шт.

29

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

4шт.

30

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

Выбрано товаров: 30
