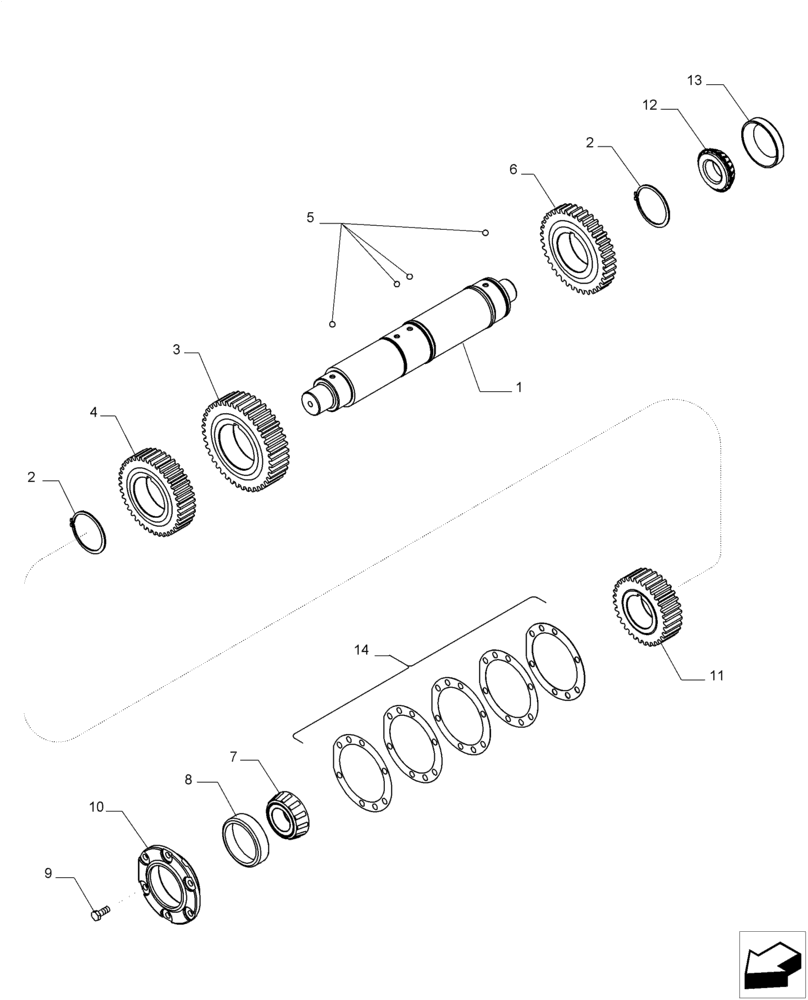

Запчасти Case IH MAGNUM 235 (21.155.AN[01]) - SPEED TRANSMISSION, COUNTERSHAFT WITHOUT CREEP OR 19 SPEED (21) - TRANSMISSION

1

1342253C2

SHAFT

1шт.

2

100-11293

SNAP RING,#293, Ext

2шт.

3

1285986C1

GEAR

1шт.

4

1285983C1

DRIVING GEAR

1шт.

5

211-1012

BALL,3/8" Dia

4шт.

6

1285989C1

GEAR

1шт.

7

110026R1

BEARING,Roller, 44.5mm ID x 93.3mm OD x 30.1mm Thk

1шт.

8

22365V

BEARING CUP,3.6718" OD x 0.93"

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

10

1286000C3

ROLLER CAGE BEARING,82 mm ID x 148 mm OD x 9.9, 19 mm

1шт.

11

1285981C1

GEAR

1шт.

12

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

13

57861H

BEARING CUP

1шт.

14

120647C2

SHIM,0.080mm Thk

1шт.

14

120648C2

SHIM,0.100mm Thk

1шт.

14

120649C2

SHIM,0.130mm Thk

1шт.

14

120650C2

SHIM,0.300mm Thk

1шт.

14

120651C2

SHIM,0.760mm Thk

1шт.
