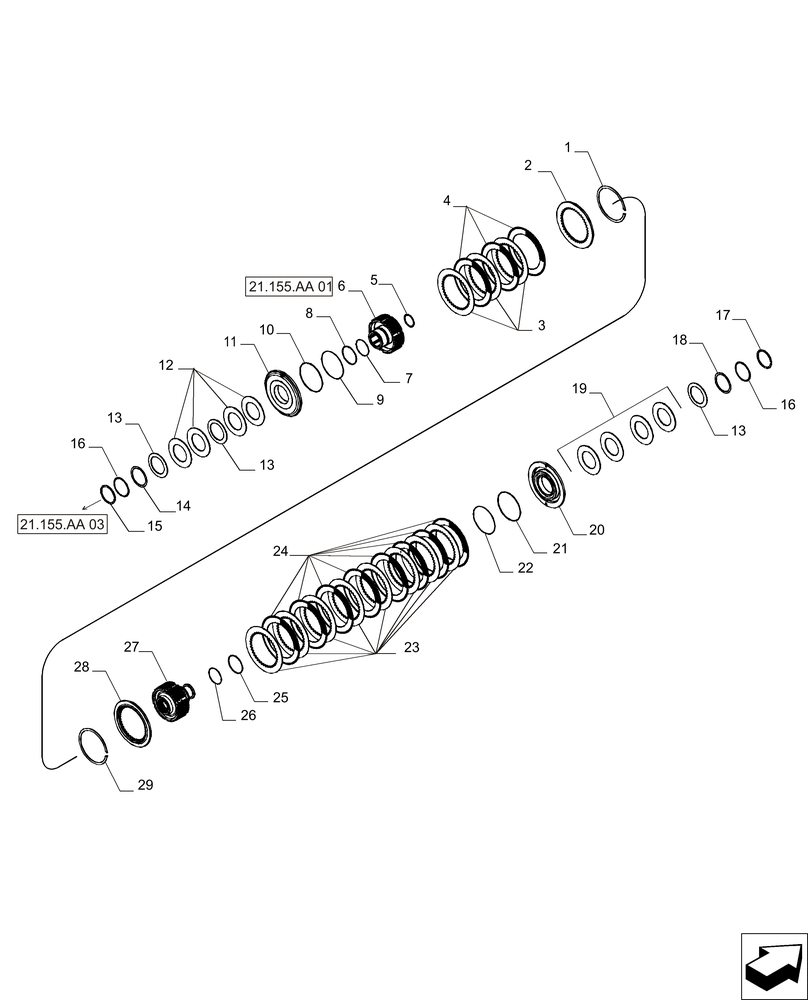

Запчасти Case IH MAGNUM 235 (21.155.AA[04]) - RANGE TRANSMISSION - MFD CLUTCH , PARK AND EMERGENCY BRAKE (21) - TRANSMISSION

1

87347811

CIRCLIP

1шт.

2

87329141

BACKING PLATE

1шт.

3

87348160

PLATE

3шт.

4

87449793

SEPARATOR

3шт.

5

101-11225

SNAP RING,#225, Ext

1шт.

6

87374797

HUB

1шт.

7

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

8

87304282

O-RING,0.103" Thk x 3.487" ID, -153, Cl 7, 75 Duro

1шт.

9

87374799

SEAL,167.1mm ID x 170.5mm OD x 2.87mm Thk

1шт.

10

14462281

O-RING,6.237" ID x 0.103" Width

1шт.

11

87374796

PISTON

1шт.

12

87305967

BELLEVILLE SPRING

4шт.

13

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

1шт.

14

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

1шт.

15

87434027

CIRCLIP

1шт.

16

84278151

RETAINER

2шт.

17

87434027

CIRCLIP

1шт.

18

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

1шт.

18

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

1шт.

19

87305967

BELLEVILLE SPRING

5шт.

20

87337887

PISTON

1шт.

21

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

22

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

1шт.

23

87449793

SEPARATOR

8шт.

24

87378802

BRAKE PLATE

233,68MM Length

8шт.

24

87348160

PLATE

236,093MM Length

8шт.

25

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

26

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

27

87575817

HUB

Class V

1шт.

27

87347832

HUB,24T Internal / 33T External Plus 6 Gaps

Class IV

1шт.

28

87347805

BACKING PLATE

1шт.

29

87347811

CIRCLIP

1шт.
