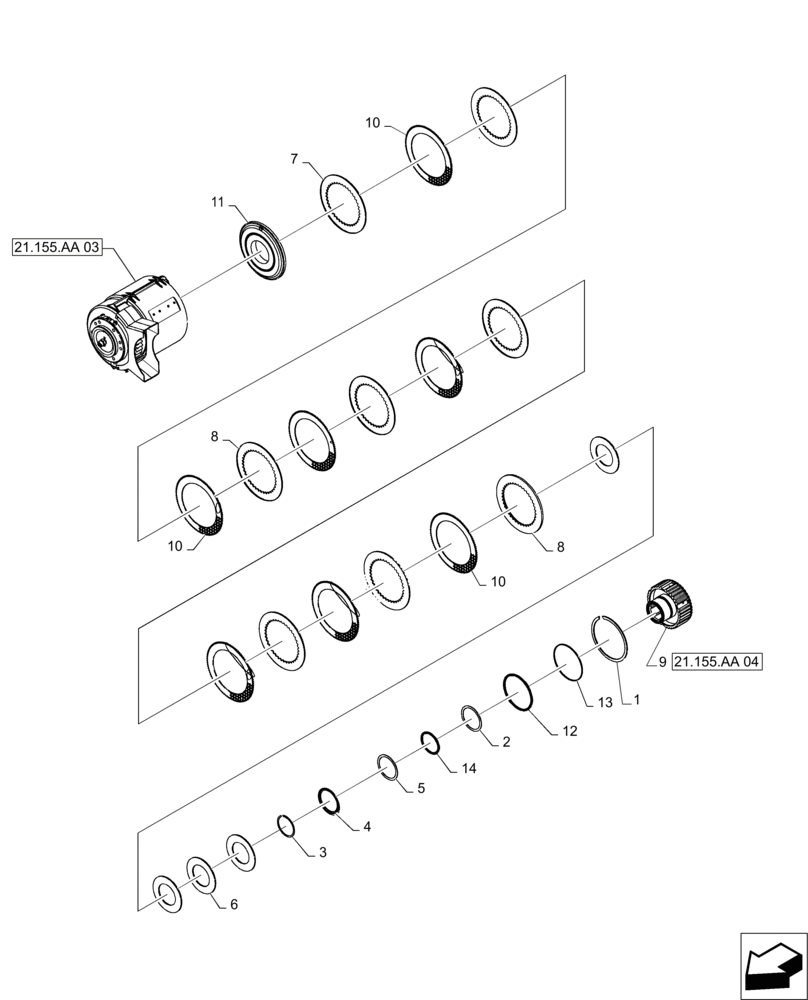

Запчасти Case IH MAGNUM 235 (21.155.AA[01]) - POWERSHIFT - RANGE TRANSMISSION - PARKING BRAKE - ASN ZDRC02583 - NAR (21) - TRANSMISSION

1

87347811

CIRCLIP

Retaining, External

1шт.

2

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake/MFD, Small

1шт.

3

87434027

CIRCLIP

Retaining, External

1шт.

4

84530165

SNAP RING

Retaining

1шт.

5

47572513

SHIM KIT,84.50mm ID x 100mm OD

84.5 X 100, HRD STL PLN

1шт.

6

87305967

BELLEVILLE SPRING

Park Brake and MFD

4шт.

7

87449793

SEPARATOR

Plate

4шт.

8

87347805

BACKING PLATE

1шт.

9

84533072

HUB

Park Brake

1шт.

10

84159176

CLUTCH PLATE

Friction

4шт.

11

87374796

PISTON

Park Brake

1шт.

12

14462281

O-RING,6.237" ID x 0.103" Width

1шт.

13

87374799

SEAL,167.1mm ID x 170.5mm OD x 2.87mm Thk

Park Brake, Large

1шт.

14

87304282

O-RING,0.103" Thk x 3.487" ID, -153, Cl 7, 75 Duro

1шт.
