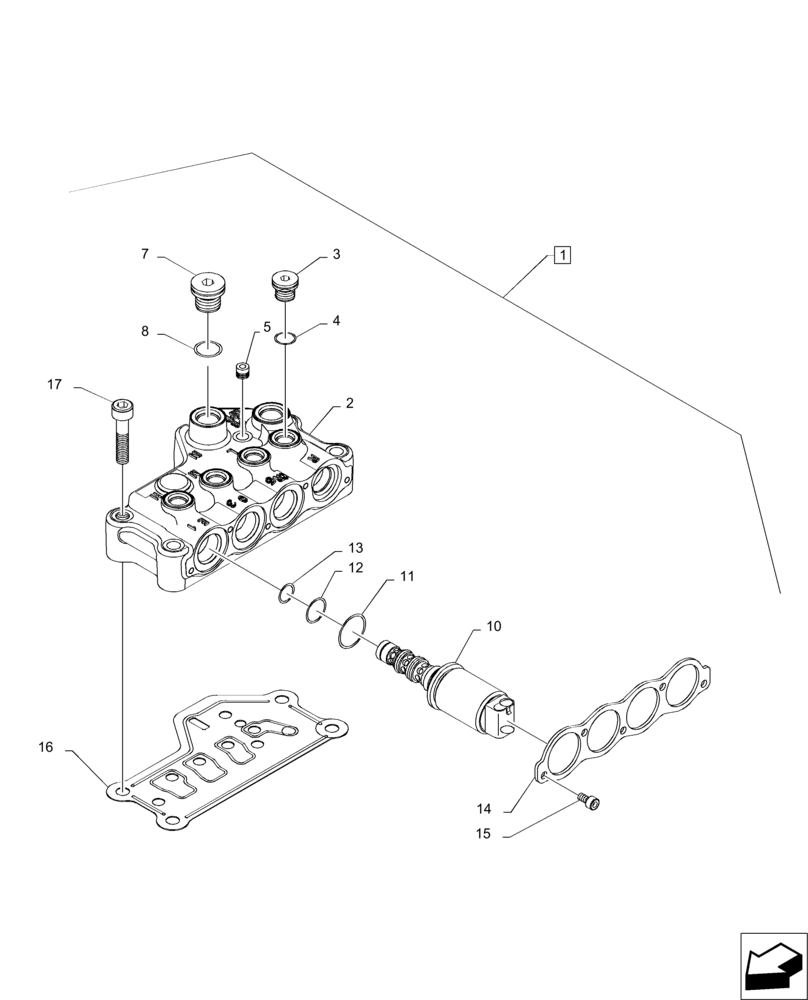

Запчасти Case IH MAGNUM 235 (21.135.AQ[06]) - VALVE ASSEMBLY, TRANSMISSION CONTROL (21) - TRANSMISSION

1

87323842

VALVE

Incl 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

5шт.

4

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

5

315168A1

PLUG

1шт.

7

221578A1

PLUG,M18 x 1.5 ORB

1шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

84173878

SOLENOID

4шт.

11

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

12

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

13

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

14

86985026

COVER,3mm Thk

1шт.

15

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

6шт.

16

87399290

GASKET,0.92mm Thk

1шт.

17

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.
