Запчасти Case IH MAGNUM 235 (21.135.AQ[05]) - VALVE ASSEMBLY, TRANSMISSION CONTROL (21) - TRANSMISSION

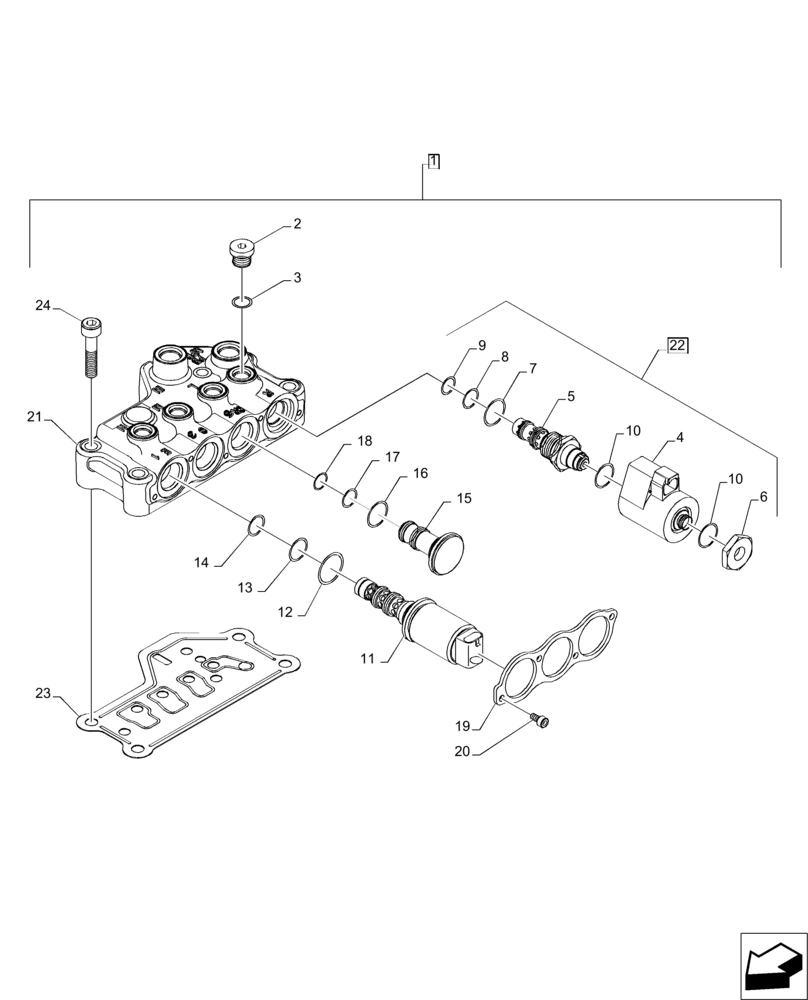

Схема запчастей Case IH MAGNUM 235 - (21.135.AQ[05]) - VALVE ASSEMBLY, TRANSMISSION CONTROL (21) - TRANSMISSION
10
10
21
3
23
13
6
16
12
4
15
22
20
9
2
5
14
8
11
7
24
1
19
18
17

Артикул

Название

Примечание

Количество

1

450724A2

VALVE

Incl 2 - 24

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

4шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 22

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 22

1шт.

6

252462A2

NUT

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

256633A1

O-RING,1.24mm Thk x 12.9mm ID, Cl 5

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

84173878

SOLENOID

4шт.

12

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

13

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

14

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

15

86984122

PLUG

1шт.

16

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

17

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

18

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

19

86985027

COVER

1шт.

20

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

4шт.

21

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

22

87675608

SOLENOID

Incl 4 - 10

1шт.

23

87399290

GASKET,0.92mm Thk

1шт.

24

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

Выбрано товаров: 24
