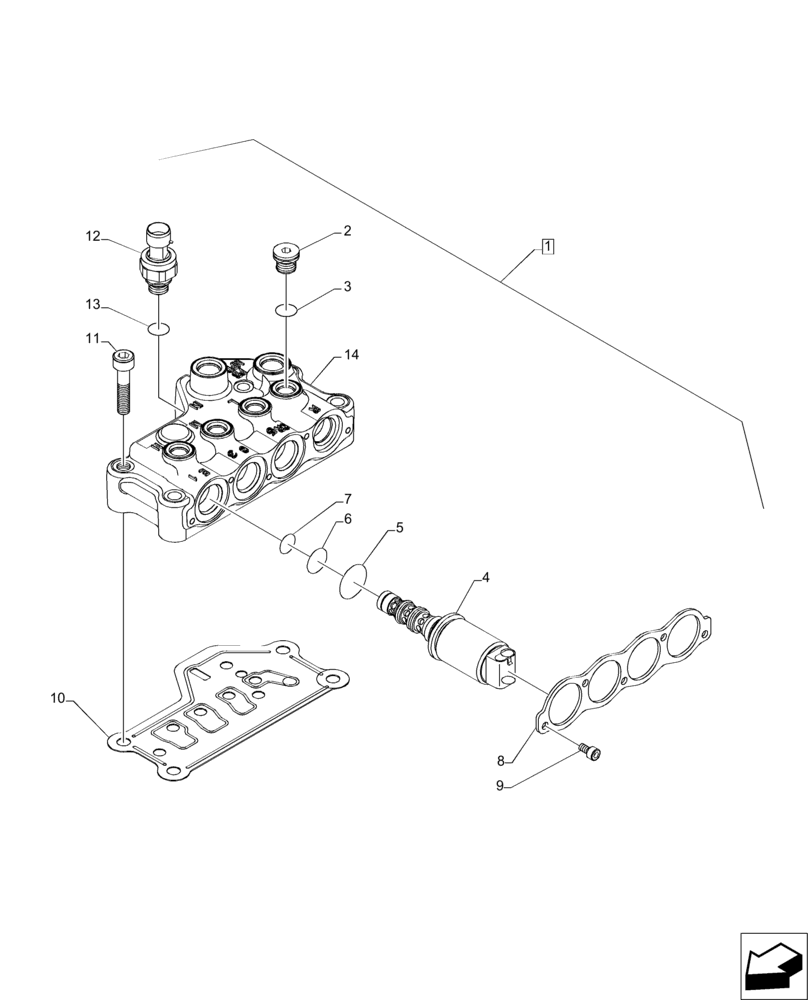

Запчасти Case IH MAGNUM 235 (21.135.AQ[04]) - VALVE ASSEMBLY, TRANSMISSION CONTROL (21) - TRANSMISSION

1

450729A2

VALVE

Incl 2 - 14

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

4шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

84173878

SOLENOID

4шт.

5

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

6

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

7

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

8

86985026

COVER,3mm Thk

1шт.

9

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

6шт.

10

87399290

GASKET,0.92mm Thk

1шт.

11

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

12

86987513

SENSOR

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
