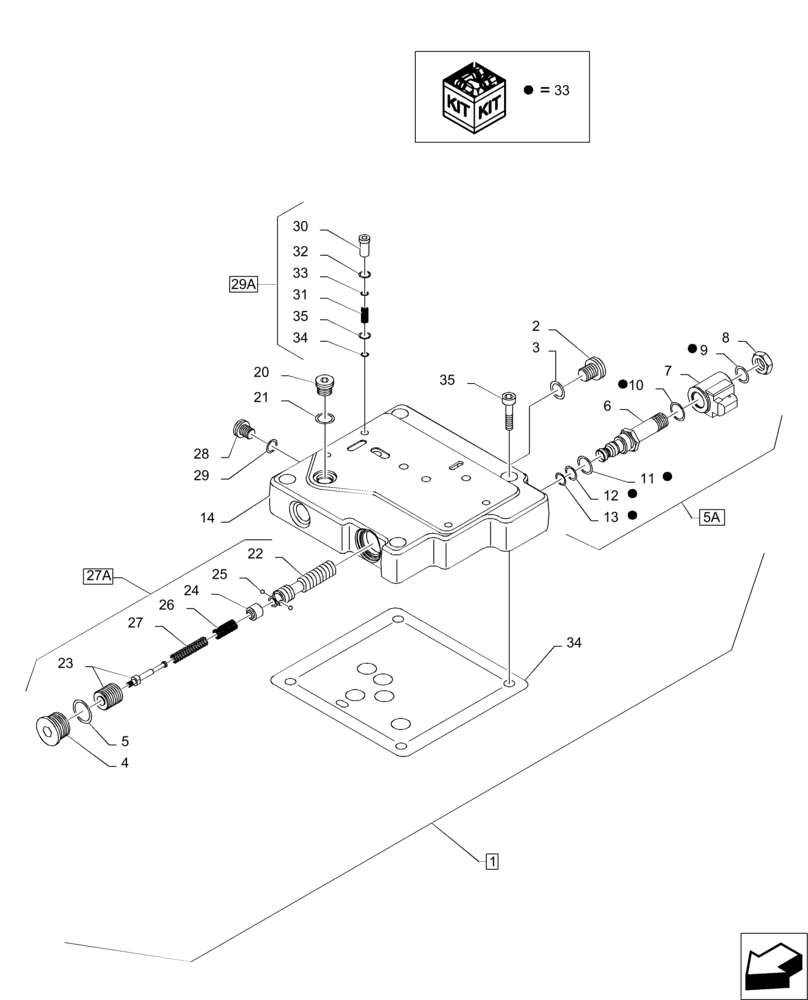

Запчасти Case IH MAGNUM 235 (21.135.AQ[02]) - VALVE ASSY, INCHING (21) - TRANSMISSION

1

445537A2

VALVE

Incl 2 - 35

1шт.

2

221578A1

PLUG,M18 x 1.5 ORB

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

221580A1

PLUG,M27 x 2 ORB

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5a

84167521

SOLENOID

Incl 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5A

1шт.

7

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 5A

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, Incl in 5A

1шт.

9

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

15

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

16

253385A2

GASKET,0.92mm Thk

1шт.

17

86988656

SPRING WASHER,Spring, 5.5mm ID x 7.5mm OD x 1.1mm Thk

1шт.

18

100-2131

SNAP RING,0.312", Int, #31

1шт.

19

86976060

BALL,7.14mm OD, Gr 24

1шт.

20

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

NSS

NOT SOLD SEPARAT

Spool, Incl in 27A

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 27A

1шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 27A

1шт.

25

NSS

NOT SOLD SEPARAT

Ball, Incl in 27A

1шт.

26

NSS

NOT SOLD SEPARAT

Spring, Incl in 27A

1шт.

27

NSS

NOT SOLD SEPARAT

Spring, Incl in 27A

1шт.

27a

302170A2

SPOOL

Incl 4, 5, 22 - 27

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29a

445492A2

CHECK VALVE

Incl 30 - 35

1шт.

30

NSS

NOT SOLD SEPARAT

Plug, Incl in 29A

1шт.

31

445494A1

VALVE SPRING,7.21mm OD x 18.53mm L

1шт.

32

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

33

308245A1

SEAL KIT

Incl 9 - 13

1шт.
