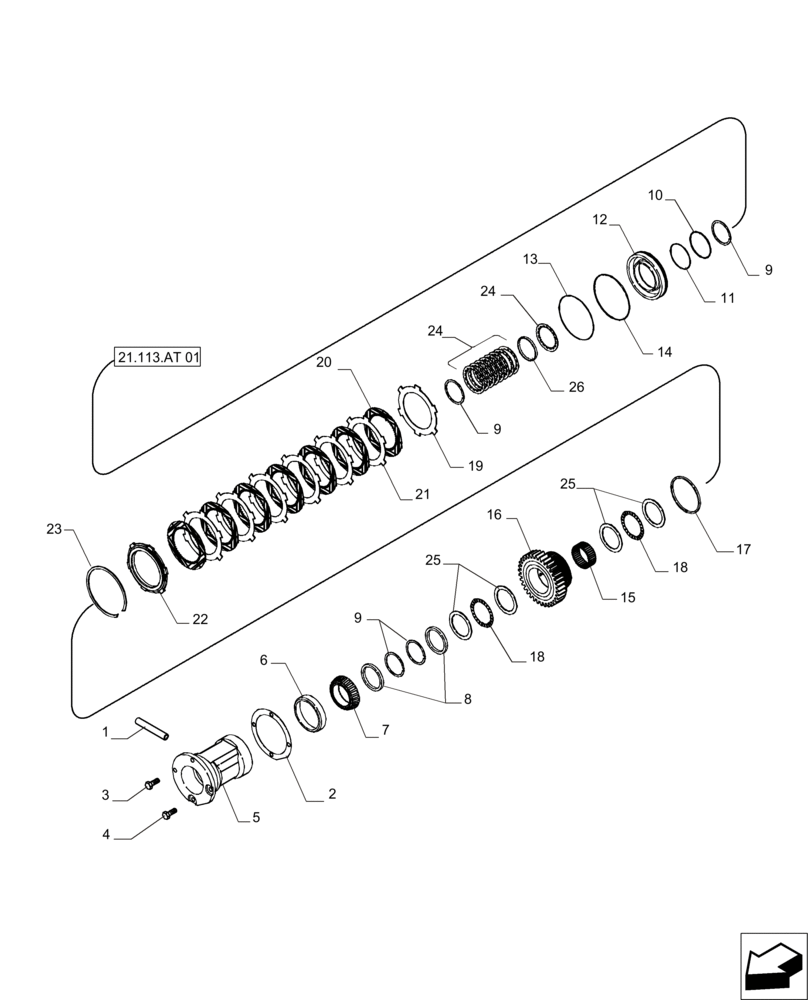

Запчасти Case IH MAGNUM 235 (21.113.AT[02]) - SPEED TRANSMISSION, INPUT SHAFT WITHOUT CREEP OR 19 SPEED (21) - TRANSMISSION

1

254574A2

CAGE

1шт.

2

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

2шт.

2

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

2шт.

2

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

2шт.

2

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

2шт.

2

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

2шт.

3

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

4

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

5

254574A2

CAGE

1шт.

6

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

1шт.

7

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

1шт.

8

1286039C1

SPACER

2шт.

9

87639535

SNAP RING,Ext, #250, 59.842mm ID

3шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

1шт.

12

242492A5

PISTON

1шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

15

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

16

1285985C1

GEAR

1шт.

17

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

19

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

1шт.

20

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

7шт.

21

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

6шт.

22

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

23

1285996C1

SNAP RING,151mm OD, Internal

1шт.

24

87425389

BELLEVILLE SPRING

9шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

26

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

1шт.
