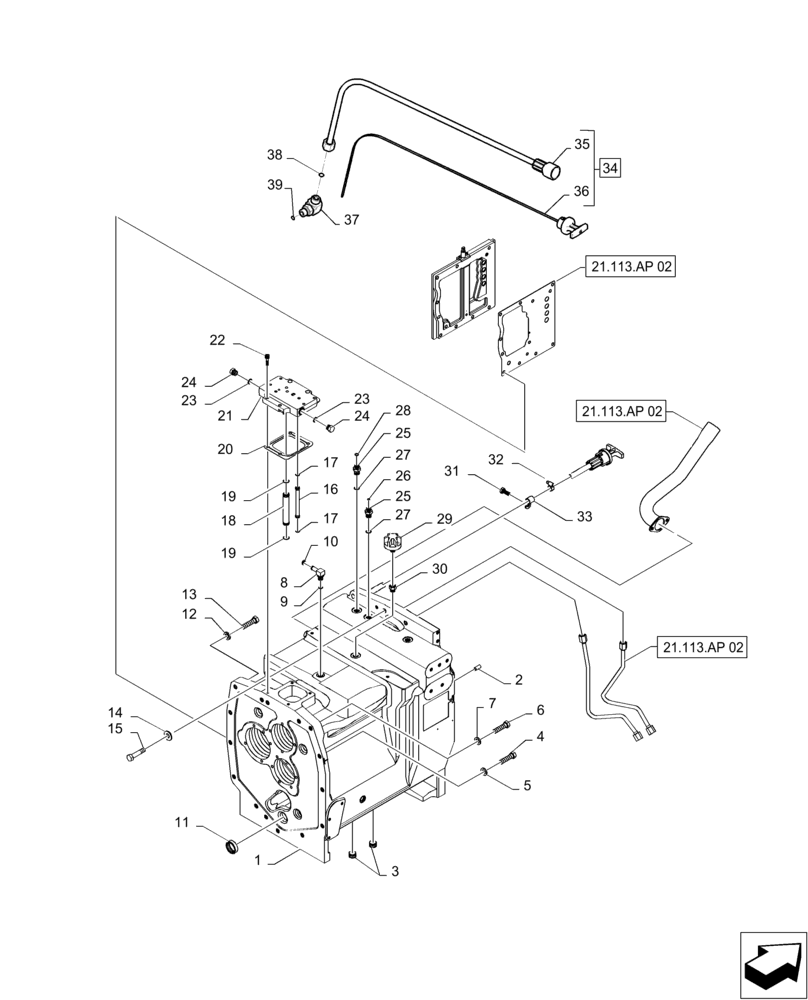

Запчасти Case IH MAGNUM 235 (21.113.AP[01]) - SPEED TRANSMISSION, HOUSING (21) - TRANSMISSION

1

87594904

TRANSMISSION HOUSING

Até Chassi AJB0603512

1шт.

1

47402784

TRANSMISSION HOUSING

Após Chassi AJB0603513

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

2шт.

3

192792A1

PLUG

2шт.

4

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

5шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

5шт.

7

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

11

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

14

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

16

47655896

TUBE

2шт.

17

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

4шт.

18

300827A1

TUBE,22.85 mm OD, 141.8 mm Length

1шт.

19

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

20

87424932

GASKET,0.92mm Thk

1шт.

21

87444975

MANIFOLD

1шт.

22

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

2шт.

25

87341626

FITTING

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

2шт.

29

1971726C1

BREATHER,1/4" - 18

1шт.

30

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

32

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

33

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

34

84155850

DIPSTICK

Incl 35, 36

1шт.

35

84155851

TUBE

1шт.

36

84155852

DIPSTICK,918mm L

1шт.

37

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
