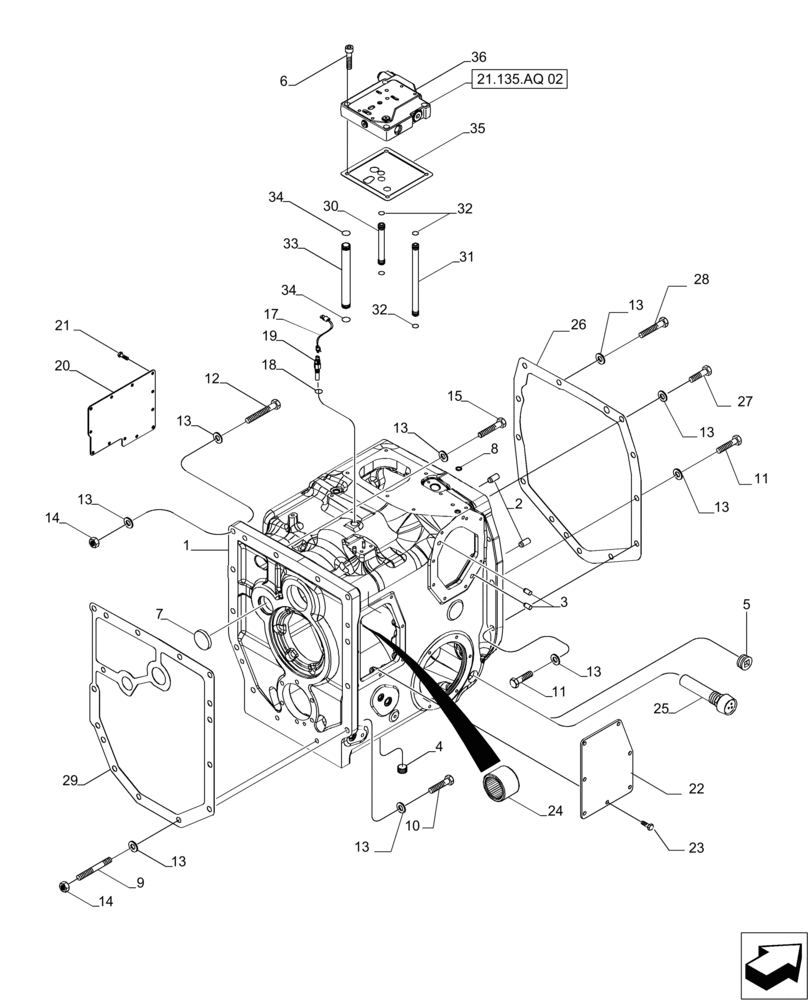

Запчасти Case IH MAGNUM 235 (21.113.AB) - RANGE TRANSMISSION, HOUSING (21) - TRANSMISSION

1

84375532

HOUSING

1шт.

2

87016652

DOWEL,M16 x 35

4шт.

3

86639247

DOWEL,M12 x 25

2шт.

4

221578A1

PLUG,M18 x 1.5 ORB

1шт.

5

327080A1

PLUG,Hdls Sq Skt Pipe,1 1/4" NPTF, W/ Sealant

1шт.

6

41-1018

PLUG,Cup, 1 1/8"

1шт.

7

41-1038

PLUG,Cup, 2 3/8"

1шт.

8

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

9

84149586

STUD,M16 x 85mm L

2шт.

10

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

11

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

9шт.

12

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

1шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

14

829-1316

NUT,M16, Cl 10

1шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

16

829-1316

NUT,M16, Cl 10

2шт.

17

87631267

WIRE HARNESS

1шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

19

87548198

SENSOR

1шт.

20

84384819

COVER

1шт.

21

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

22

225209A1

COVER

1шт.

23

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

7шт.

24

301533R1

NEEDLE BEARING,Needle, 44.44mm ID x 53.96mm OD x 38.1mm W

1шт.

26

87390949

GASKET,0.79mm Thk

1шт.

27

87308873

12 PT SCREW,Flg, M16 x 90mm, Cl 12.9

1шт.

28

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

30

47655895

TUBE

1шт.

31

47655894

TUBE

3шт.

33

300828A1

TUBE,22.85 mm OD, 199 mm Length

1шт.

34

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

35

253385A2

GASKET,0.92mm Thk

1шт.

36

445537A2

VALVE

1шт.

37

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.
