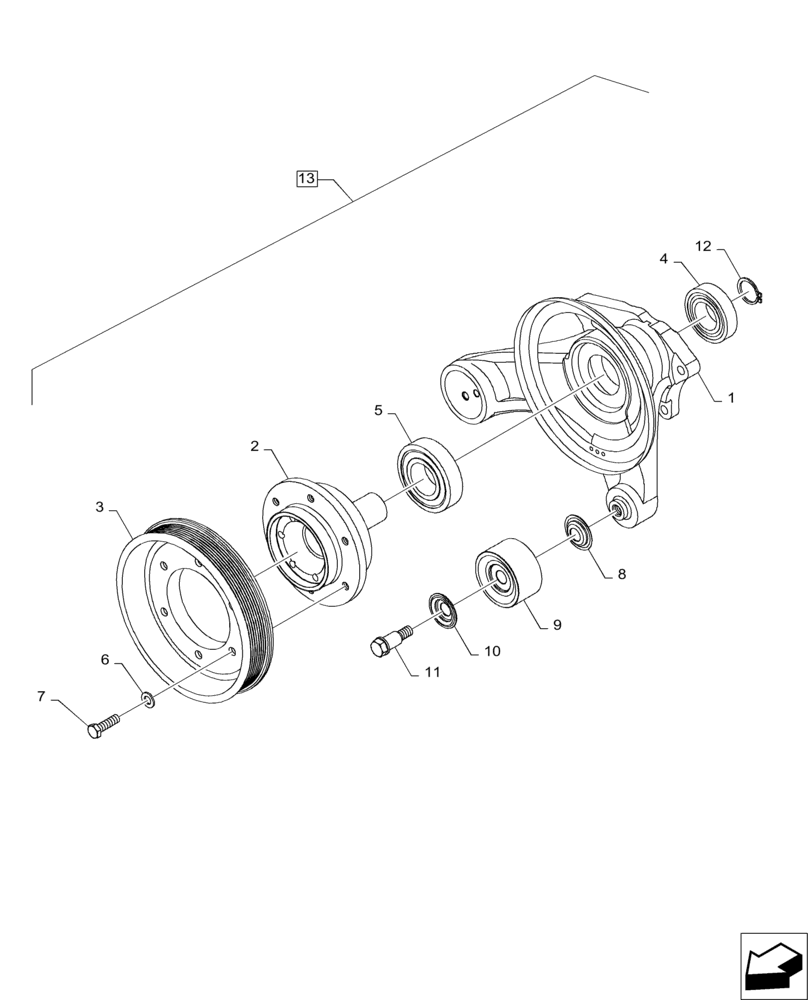

Запчасти Case IH MAGNUM 235 (10.414.AC[03]) - SUPPORT ASSEMBLY, VISCOUS FAN DRIVE, ELECTRONIC (10) - ENGINE

1

84570101

SUPPORT

1шт.

2

84327141

SHAFT

1шт.

3

84325516

PULLEY,224mm OD

1шт.

4

274198

BALL BEARING,30mm ID x 62mm OD x 16mm W

1шт.

5

84328068

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

8

87840523

COVER

1шт.

9

87840244

PULLEY,74mm OD

1шт.

10

87840420

COVER

1шт.

11

87575621

BOLT,Flng, M12 x 1.75 x 45.2mm, Cl 8.8

1шт.

12

8409215

CIRCLIP

1шт.

13

84570275

SUPPORT

Assy, Incl 1- 12

1шт.
