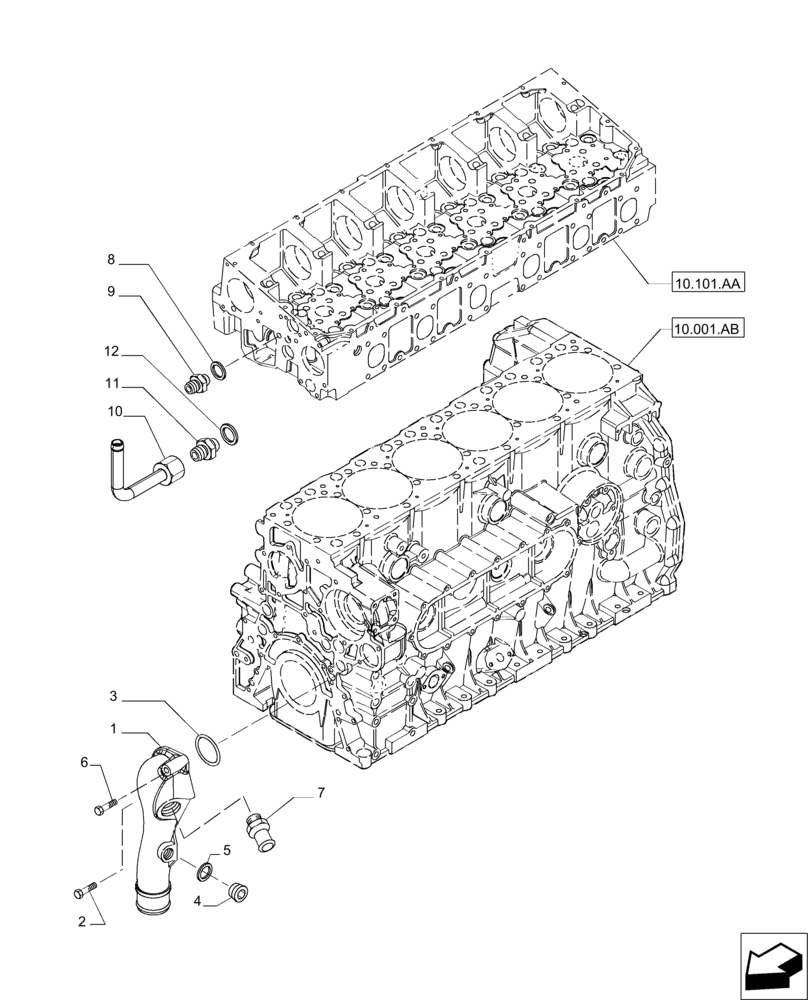

Запчасти Case IH MAGNUM 235 (10.400.BB[02]) - WATER PUMP PIPES, ENGINE WITHOUT BRAKE (10) - ENGINE

1

504382476

MANIFOLD

1шт.

2

16586625

BOLT,M8 x 35mm

1шт.

3

14464681

O-RING,56.74mm ID x 2.512" OD x 3.53mm

1шт.

4

16993011

PLUG

1шт.

5

99434480

SEAL

1шт.

6

16592225

BOLT,M8 x 55mm

1шт.

7

504365410

FITTING

1шт.

8

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

9

504321291

MANIFOLD

1шт.

10

500331700

TUBE

1шт.

11

504196249

FITTING

1шт.

12

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

2шт.
