Запчасти Case IH MAGNUM 225 (10.105.01[02]) - CONNECTING ROD (10) - ENGINE

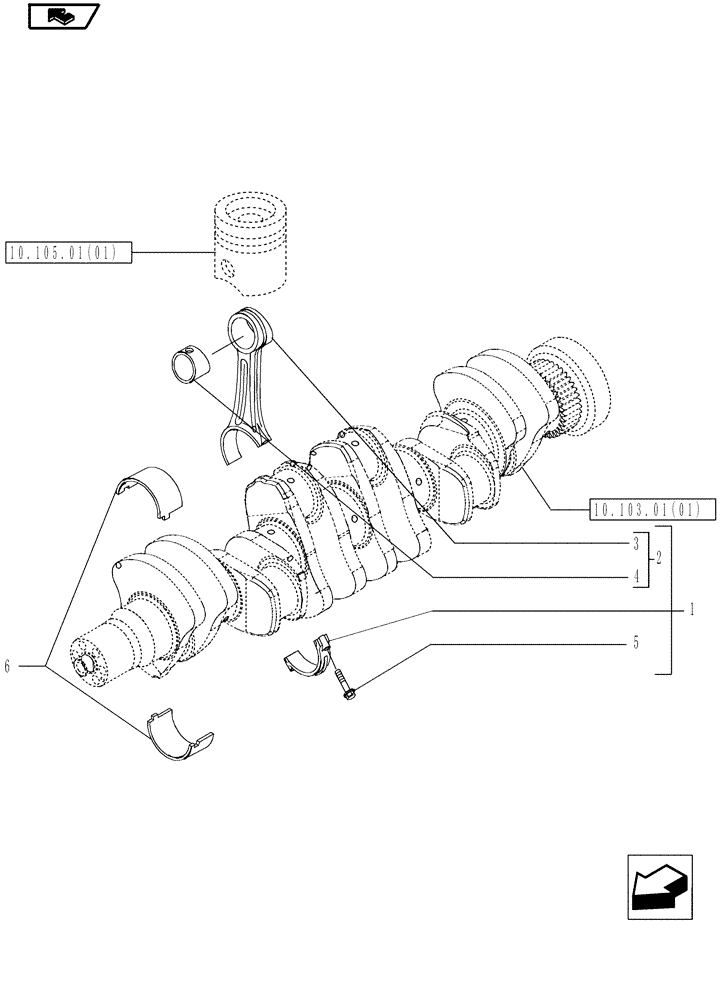

Схема запчастей Case IH MAGNUM 225 - (10.105.01[02]) - CONNECTING ROD (10) - ENGINE
3
5
1
10.105.01(01)
10.103.01(01)
home
2
6
4

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY, Inc. 2 - 5

6шт.

2831298R

REMAN-CONNECTING ROD

Magnum 180, Magnum 190, Magnum 210, Magnum 225

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, Assembly, Inc. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD, Connecting

1шт.

4

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

5

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

6

2856309

CRANKSHAFT BEARING

6шт.

6

4892715

BEARING LINER

BEARING, CON. ROD

6шт.

Выбрано товаров: 9
