Запчасти Case IH MAGNUM 225 (29.218.01[03]) - TRANSMISSION, HYDROSTATIC PUMP, PUMP AND GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (29) - HYDROSTATIC DRIVE

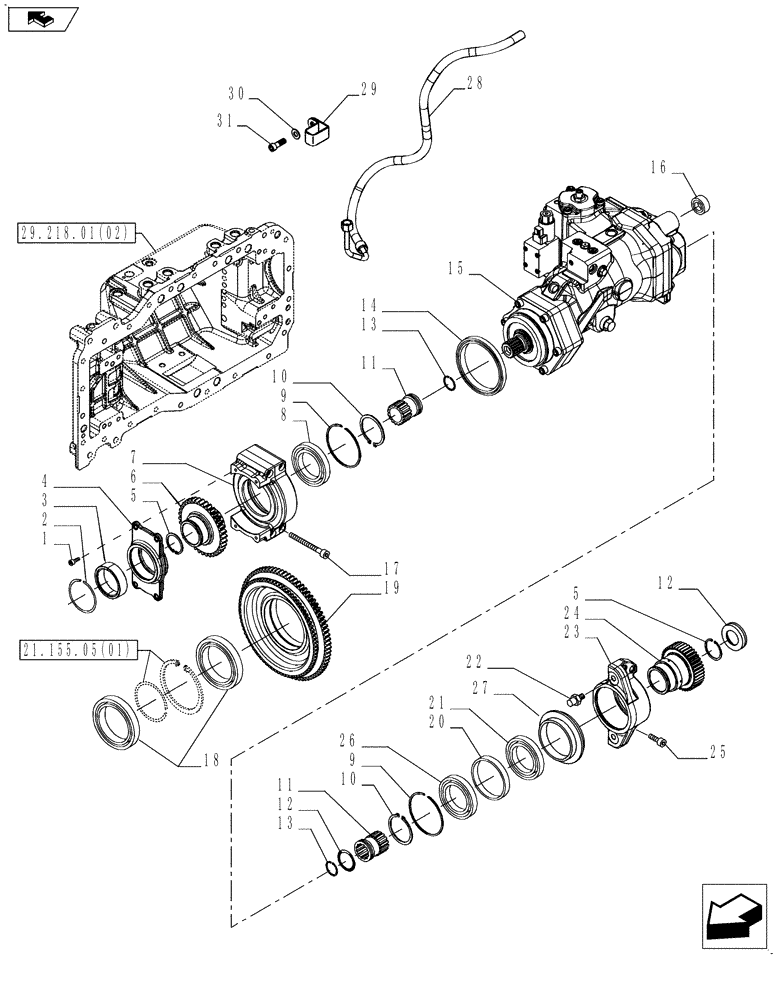

Схема запчастей Case IH MAGNUM 225 - (29.218.01[03]) - TRANSMISSION, HYDROSTATIC PUMP, PUMP AND GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (29) - HYDROSTATIC DRIVE
home
21
21.155.05 01
2
21.155.05(01)
22
29
26
16
29.218.01 02
11
7
12
25
5
4
13
12
9
5
30
11
20
8
29.218.01(02)
10
10
6
23
13
14
27
28
24
15
17
9
3
31
19
18
1

Артикул

Название

Примечание

Количество

1

14306320

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

2

87574918

SNAP RING,M86.8, Ext

D=85

1шт.

3

87562573

NEEDLE BEARING,Needle, 68mm ID x 85mm OD x 25mm W

68 x 85 x 25

1шт.

4

87566877

SUPPORT

Cover

1шт.

5

11060576

SNAP RING,M52, Int

2шт.

6

87566872

PINION,36T

1шт.

7

87566879

SUPPORT

Front

1шт.

8

47136958

BALL BEARING,70mm ID x 110mm OD x 20mm W

70 x 110 x 20

1шт.

9

87567448

SNAP RING,M113.3, Ext

D= 70

2шт.

10

11070376

SNAP RING,M70, Ext

2шт.

11

84248897

SPLINED COUPLING,36/51.7mm ID x 40/54.7mm OD x 62mm L

2шт.

12

84248817

RETAINER CUP,30mm ID x 58.5mm OD x 13mm Thk

1шт.

13

13421674

SNAP RING,M38, Int

2шт.

14

87550536

RUBBER SEAL,127mm ID x 152mm OD x 14mm Thk

1шт.

15

84228195

HYDROSTATIC PUMP

1шт.

84536173R

REMAN-HYDROSTAT PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 All TRACTOR (NA);Reman for new PN 84228195

1шт.

84536173C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

84120288

BUSHING,25mm ID x 42mm OD x 23mm L

2шт.

17

14332620

HEX SOC SCREW,M12 x 1.25 x 110mm, Cl 8.8

M12 x 1.25 x 110

4шт.

18

47136425

BALL BEARING,105mm ID x 145mm OD x 20mm W

105 x 145 x 20

2шт.

19

87566890

GEAR

1шт.

20

87572495

SPACER,100mm ID x 110mm OD x 15mm L

1шт.

21

87587823

ROLLER BEARING,80mm ID x 110mm OD x 20mm W

1шт.

22

84248990

PIN,29.5mm OD x 54mm L

2шт.

23

84248818

SUPPORT

REAR

1шт.

24

84248819

PINION,40T

1шт.

25

14331220

HEX SOC SCREW,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

26

84455696

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

27

84245241

RING,88mm ID x 125mm OD x 11.5mm Thk

1шт.

28

84235771

FLEXIBLE HOSE

1шт.

29

84236686

BRACKET

1шт.

30

CAS2168745

SCREW,M8 x 12mm, Cl 8.8

1шт.

31

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

1шт.

Выбрано товаров: 33
