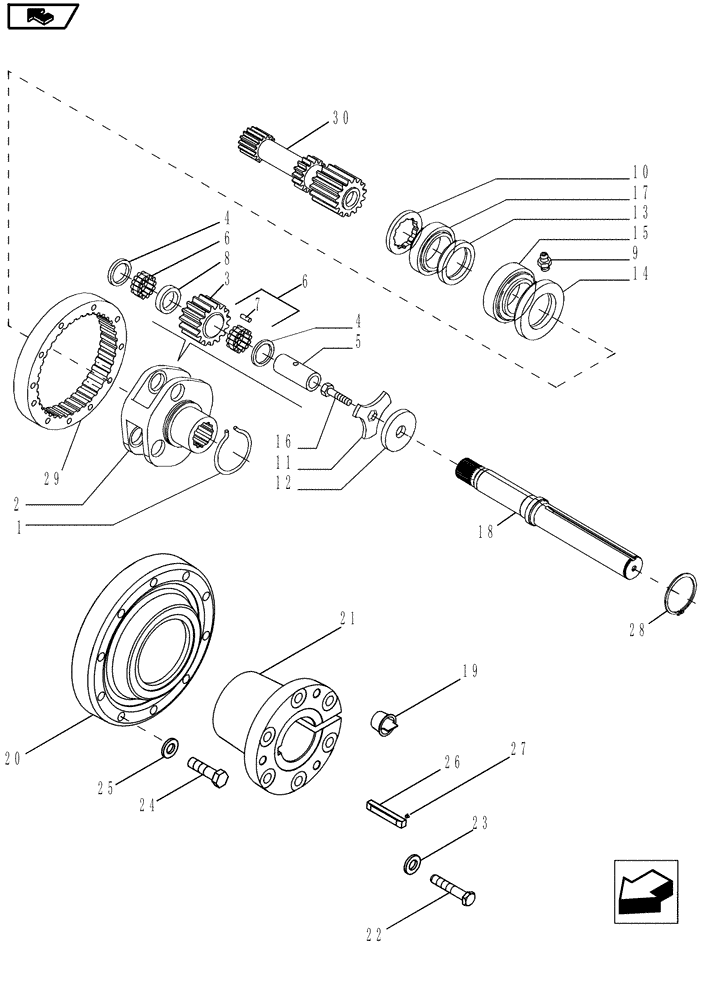

Запчасти Case IH MAGNUM 225 (27.120.05[06]) - BAR AXLE 112" FINAL DRIVE, GEARS & KEYED SHAFT, MAGNUM 210, 225 ASN ZARH01984 (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

GEAR CARRIER

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

1шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

85 x 130 x 29

2шт.

18

84235141

SHAFT

112"

2шт.

19

303401A1

PLUG

6шт.

20

405812A1

HUB

2шт.

21

405815A1

BUSHING

2шт.

22

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

23

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

24

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

25

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

26

A63219

KEY

2шт.

27

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

28

800-51100

SNAP RING,M100, Ext, Hvy

2шт.

29

87307352

RING GEAR

2шт.

30

87307366

GEAR SHAFT

2шт.
