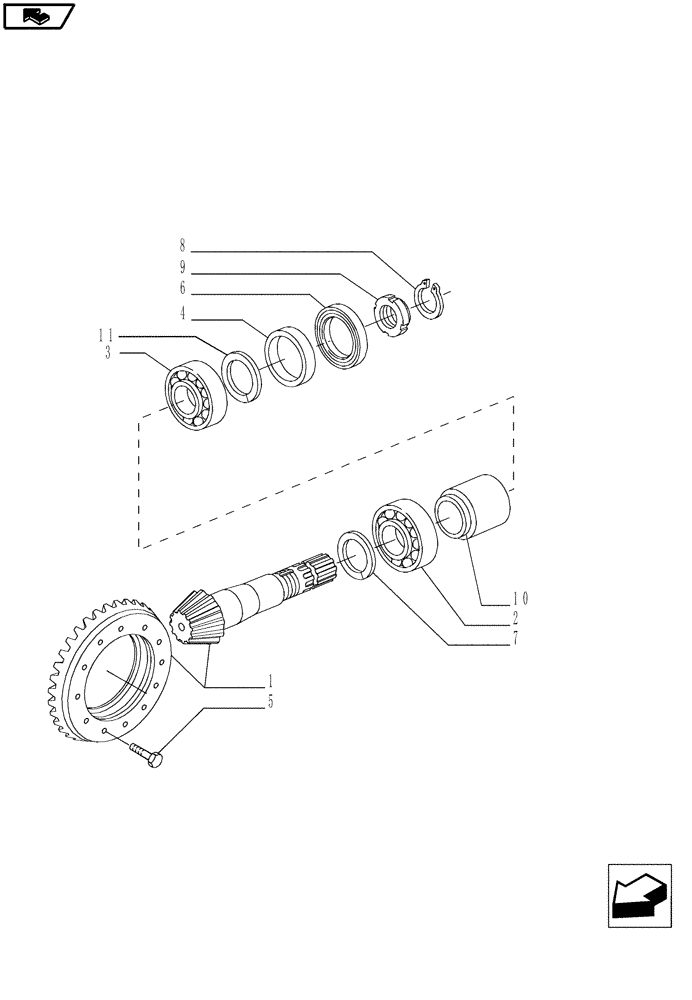

Запчасти Case IH MAGNUM 225 (25.102.03[03]) - DIFFERENTIAL, MFD CLASS 4 AXLE (25) - FRONT AXLE SYSTEM

1

84273807

BEVEL GEAR

ASSY, RATIO 10/34

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

M41.275 x 82.550 x 26.543

1шт.

3

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

M45 x 100 x 38.25

1шт.

4

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

5

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

6

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

M57 x 85 x 12

1шт.

7

84219417

SHIM,45.1mm ID x 58mm OD x 1.9mm Thk

MM45.1 x 58 x 1.9

1шт.

7

84219416

SHIM,45.1mm ID x 58mm OD x 2mm Thk

MM45.1 x 58 x 2.0

1шт.

7

84219415

SHIM,45.1mm ID x 58mm OD x 2.1mm Thk

MM45.1 x 58 x 2.1

1шт.

7

84219414

SHIM,45.1mm ID x 58mm OD x 2.2mm Thk

MM45.1 x 58 x 2.2

1шт.

7

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

7

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

7

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

7

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

7

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

7

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

7

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.

7

4999068

SHIM

MM.45.1 x 58 x 3.0

1шт.

7

4999069

RING

SPARE PART MM.45.1 x 58 x 3.1

1шт.

7

4999070

RING

MM.45.1 x 58 x 3.2

1шт.

7

4999071

RING

SPARE PART MM.45.1 x 58 x 3.3

1шт.

7

4999072

RING

MM.45.1 x 58 x 3.4

1шт.

7

4999073

RING

SPARE PART MM.45.1 x 58 x 3.5

1шт.

8

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

9

5119147

RING NUT,M40 x 1.5

M40 x 19.5

1шт.

10

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

11

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

11

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

11

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

11

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

11

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

11

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

11

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

11

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

11

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

11

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

11

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

11

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

11

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

11

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

11

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

11

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

11

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

11

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

11

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

11

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

11

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

11

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

11

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

11

5169310

SHIM,41.7mm ID x 48mm OD x 3.35mm Thk

1шт.

11

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

11

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.
