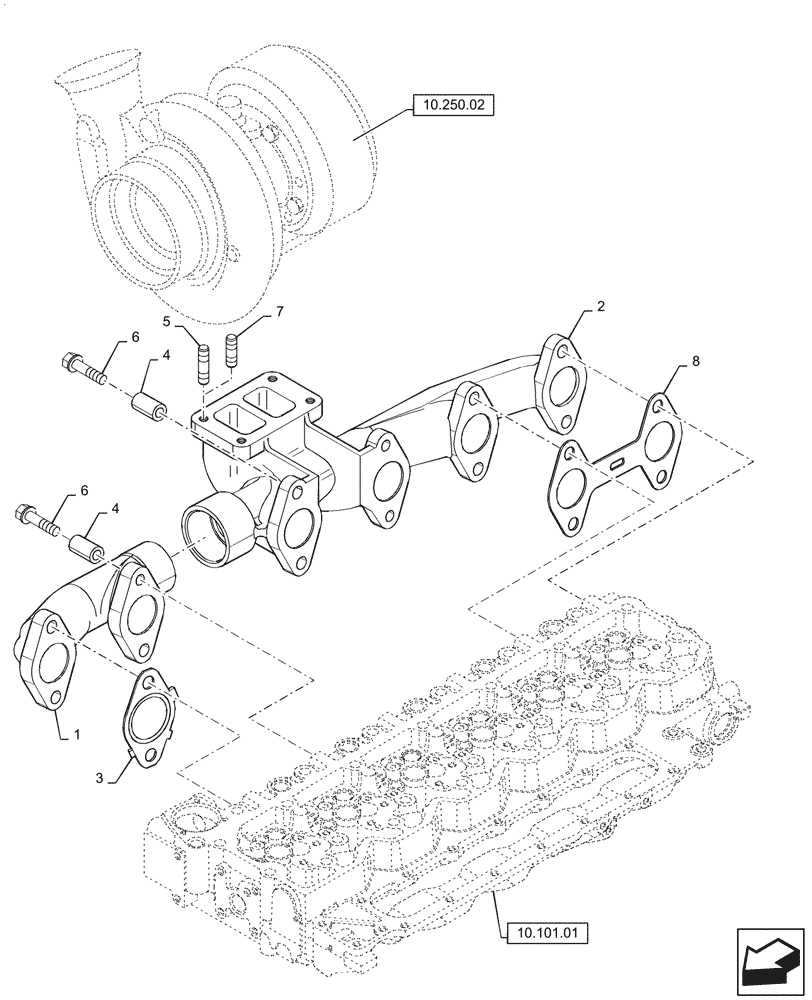

Запчасти Case IH MAGNUM 225 (10.254.04[02]) - EXHAUST MANIFOLD (10) - ENGINE

1

2831205

EXHAUST MANIFOLD

1шт.

2

2854818

EXHAUST MANIFOLD

1шт.

3

2830444

MANIFOLD GASKET

6шт.

4

2854819

SPACER

12шт.

5

4899085

STUD,M10 x 1.5 x 42mm

4шт.

6

2852744

SCREW,Flng, M10 x 1.5 x 65mm

12шт.

7

2859189

STUD

M10 x 1.5 x 35mm, If Used, Replaces one Stud Ref 5

1шт.

8

47712103

GASKET,1.4mm Thk

Manifold, Dual, Service Only

3шт.
