Запчасти Case IH MAGNUM 225 (10.216.02) - FUEL TANK & MOUNTING - S/N ZCRH01701 AND AFTER (10) - ENGINE

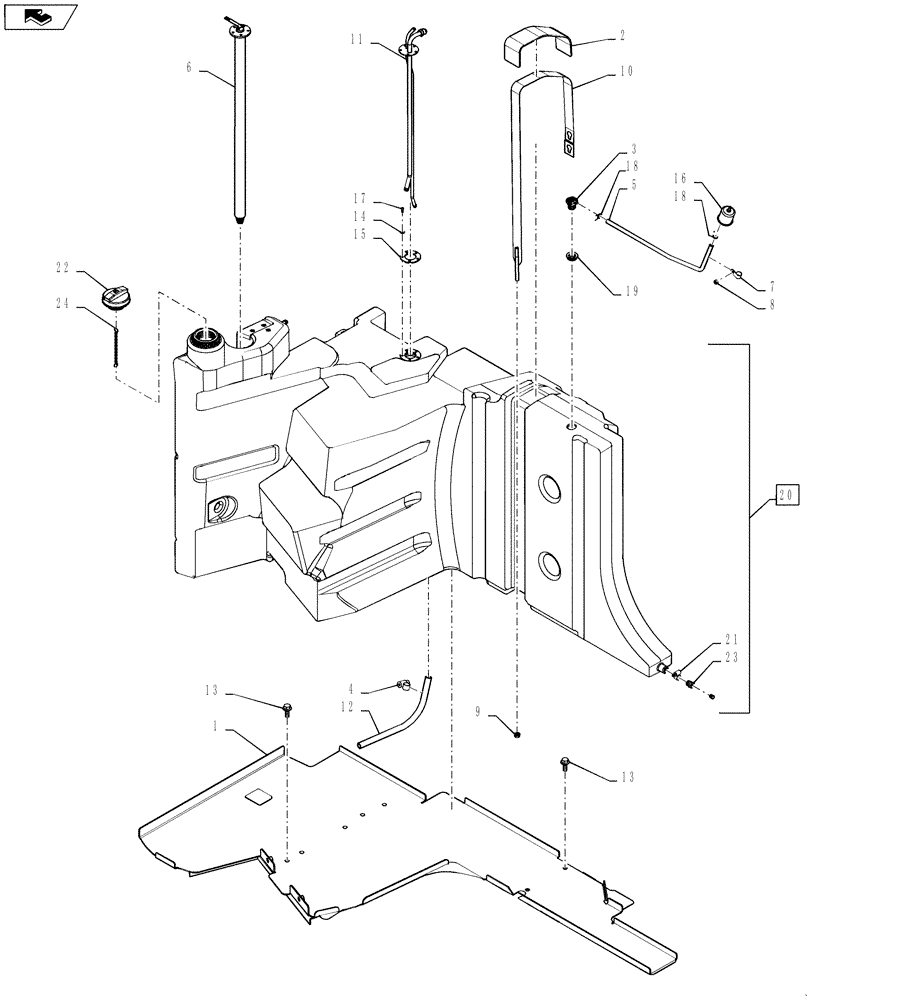

Схема запчастей Case IH MAGNUM 225 - (10.216.02) - FUEL TANK & MOUNTING - S/N ZCRH01701 AND AFTER (10) - ENGINE
1
4
5
13
15
7
14
3
9
24
17
2
19
12
13
21
16
22
23
6
10
11
18
home
20
18
8

Артикул

Название

Примечание

Количество

1

84586580

SUPPORT

Fuel Tank

1шт.

2

84122288

STRAP

Rubber Cushion

1шт.

3

255094A1

GROMMET

Fuel Tank Roll Over Valve

1шт.

4

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

1шт.

5

275801A1

FUEL HOSE

Tank Roll Over Valve Vent

1шт.

6

84137594

SENDER UNIT

Fuel

1шт.

7

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

9

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

10

84122290

SECURING STRAP

Fuel Tank

1шт.

11

84194645

PIPE

Fuel/Supply Return

1шт.

12

84197988

FUEL HOSE

Supply

1шт.

13

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

7шт.

14

86509828

LOCK WASHER,M5

10шт.

15

87537695

GASKET

Fuel Sender

1шт.

16

87433010

BREATHER

Fuel Tank Vent

1шт.

17

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

10шт.

18

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

19

275800A1

VALVE STEM

Roll Over Fuel Tank

1шт.

20

84498967

FUEL TANK

105 Gal.; Incl. Refs. 21 - 24

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

22

87731275

CAP

1шт.

23

87752134

REDUCER

1шт.

24

84546017

CHAIN (AG)

Fuel Cap Tether

1шт.

25

87433010

BREATHER

Fuel (Not Shown)

1шт.

Выбрано товаров: 25
