Запчасти Case IH MAGNUM 225 (10.202.01) - ENGINE AIR CLEANER ASSEMBLY (10) - ENGINE

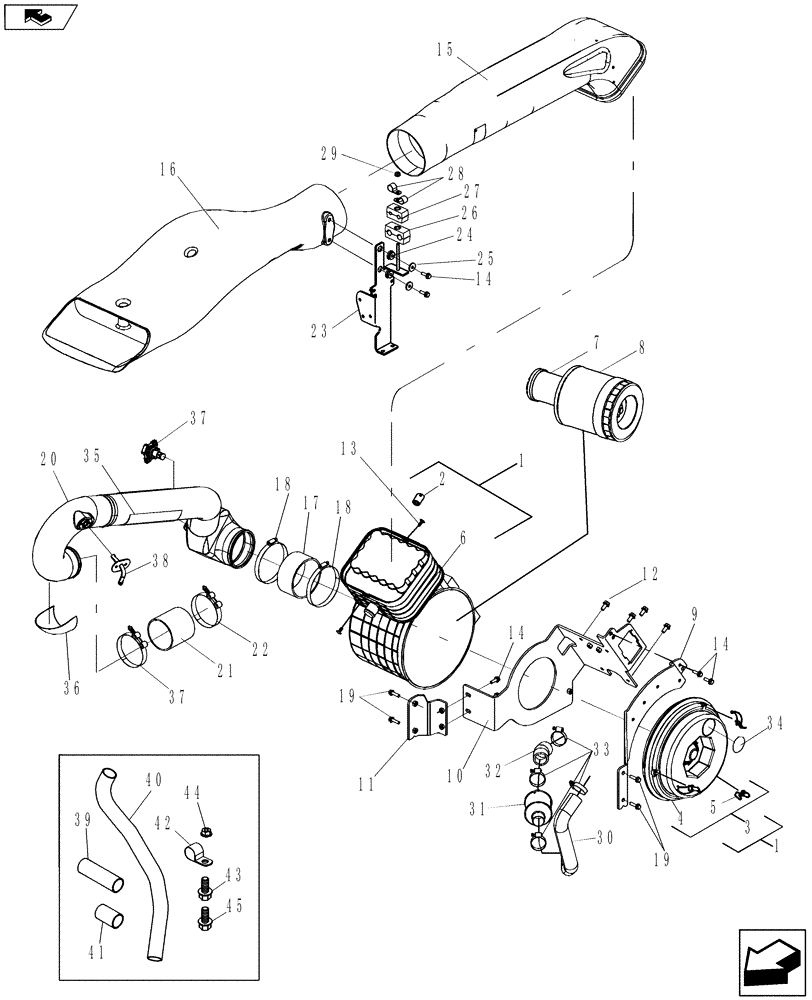

Схема запчастей Case IH MAGNUM 225 - (10.202.01) - ENGINE AIR CLEANER ASSEMBLY (10) - ENGINE
42
5
39
30
33
37
18
13
14
19
11
12
45
6
32
36
3
7
25
27
34
17
26
41
4
22
home
21
23
40
9
35
37
14
8
2
38
44
1
31
18
43
20
10
15
1
29
28
14
16
24
19

Артикул

Название

Примечание

Количество

1

87517150

AIR FILTER,127mm ID x 347mm OD x 481.5mm L

Complete Assembly, Inc. 2 - 6

1шт.

When Ordering PN 87517150, You Should Get Decal PN 87497047 as Well to Place on the Cover.

1шт.

2

5138821

INDICATOR

Electrical

1шт.

3

87517152

COVER

Assembly, Inc. 4 - 5

1шт.

When Ordering PN 87517152, You Should Get Decal PN 87497047 as Well to Place on the Cover.

1шт.

4

NSS

NOT SOLD SEPARAT

COVER, End

1шт.

5

NSS

NOT SOLD SEPARAT

LATCH, Assembly

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety

1шт.

8

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main

1шт.

9

84182807

BRACKET

Air Cleaner Support, Left Hand

1шт.

10

84228401

BRACKET

Air Cleaner Support, Right Hand

1шт.

11

87751851

BRACKET

With Air Cleaner Support, Right Hand

1шт.

12

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

13

93199C1

FASTENER

Ratchet

2шт.

14

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

15

84122739

AIR DUCT

Rear Intake

1шт.

16

87307977

AIR DUCT

Front Intake

1шт.

17

84535277

INTAKE AIR HOSE

127mm ID x 65mm Wide

1шт.

18

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

2шт.

19

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

20

84263274

AIR DUCT

Clean Air

1шт.

21

84216173

AIR HOSE

, Serial Range: Duct-Turbo

1шт.

22

87652890

CLAMP,4.12" - 4.44"

2шт.

23

84217265

BRACKET, SUPPORTING

With Air Duct Support

1шт.

24

86400620

ISOLATOR

2шт.

25

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

26

1546027C1

CLAMP

Hydraulic Tube 19.05 x 19.05

1шт.

27

410573A1

CLAMP

Hydraulic Tube 12.7 x 9.52

1шт.

28

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

30

84293658

HOSE

Aspirator, Upper

1шт.

31

284427A1

VALVE

Aspirator Check

1шт.

32

84292767

TUBE

Aspirator Exhaust

1шт.

33

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

6шт.

34

87497047

DECAL

Air Cleaner Cover

1шт.

35

84192179

SHIELD

Heat Shield

1шт.

36

87470727

HEAT SHIELD

Exhaust Manifold

1шт.

37

87482355

SENSOR

Humidity

1шт.

38

84260385

SEAL RETAINER

with CCV Port

1шт.

39

84293659

TUBE

, Serial Range: Aspirator-Exhaust

1шт.

40

84292767

TUBE

, Serial Range: Aspirator-Exhaust

1шт.

41

84292772

HOSE

Aspirator

1шт.

42

84351016

CLAMP

1шт.

43

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

4шт.

44

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

45

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 47
