Запчасти Case IH MAGNUM 225 (10.012.03) - ENGINE MOUNTING, SADDLE SUSPENSION (10) - ENGINE

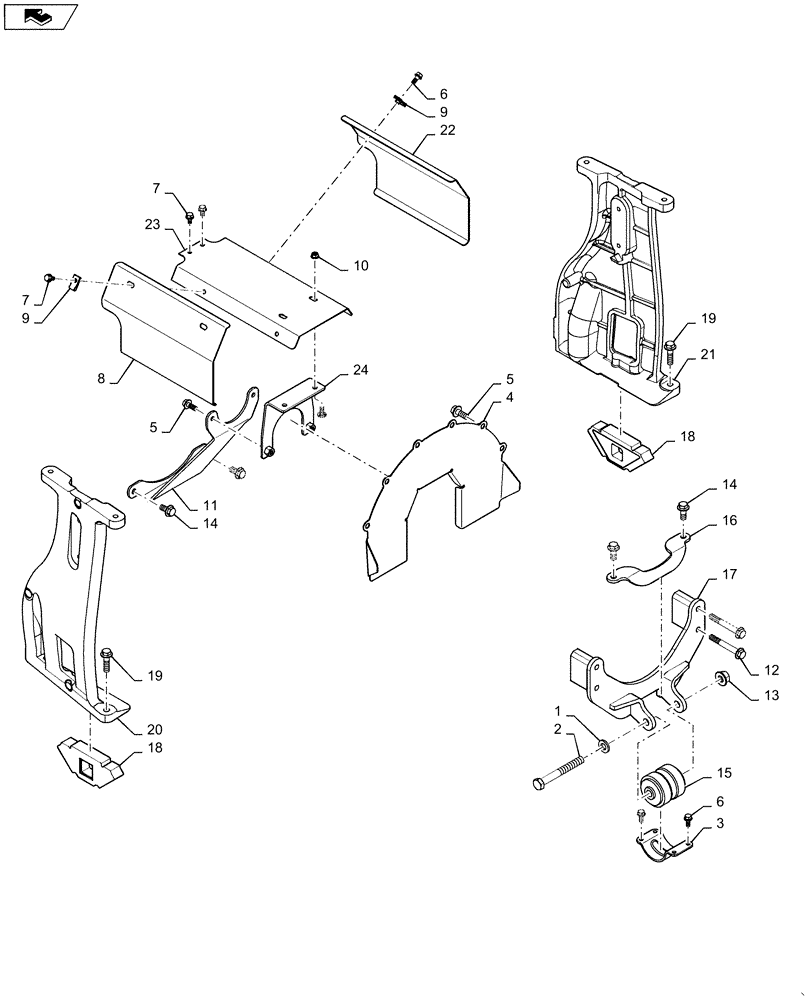

Схема запчастей Case IH MAGNUM 225 - (10.012.03) - ENGINE MOUNTING, SADDLE SUSPENSION (10) - ENGINE
12
23
10
9
7
21
11
17
2
1
24
8
15
4
14
22
19
13
16
6
18
9
18
3
7
5
home
14
5
6
20
19

Артикул

Название

Примечание

Количество

1

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

2

392531

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

1шт.

3

87387523

BRACKET

Receiver Front Mount

1шт.

4

84403320

COVER

Flywheel

1шт.

5

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

8шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

7

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

8

87727812

SHIELD

RH

1шт.

9

833-41308

SPRING NUT,M8, U

4шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

11

87727816

BRACKET

Shield Support

1шт.

12

854-12090

BOLT,Hvy Hex, M12 x 90mm, Cl 10.9

4шт.

13

825-2416

FLANGE NUT,M16 x 2, Flg, Cl 8

1шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

15

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Front Engine Mount

1шт.

16

84572239

CLAMP BRACKET

Engine

1шт.

17

84572230

SUPPORT

Front Engine Mount

1шт.

18

251991A1

SUPPORT

Rear

2шт.

19

87018388

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

4шт.

20

84126292

SUPPORT

Hood Lower, RH

1шт.

21

84126294

SUPPORT

Hood Lower, LH

1шт.

22

87727818

SHIELD

LH

1шт.

23

84346373

SHIELD

Upper

1шт.

24

87533238

MOUNTING PLATE

Shield

1шт.

Выбрано товаров: 24
