(88.055.06) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP

Запчасти Case IH MAGNUM 225 (88.055.06) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP (88) - ACCESSORIES

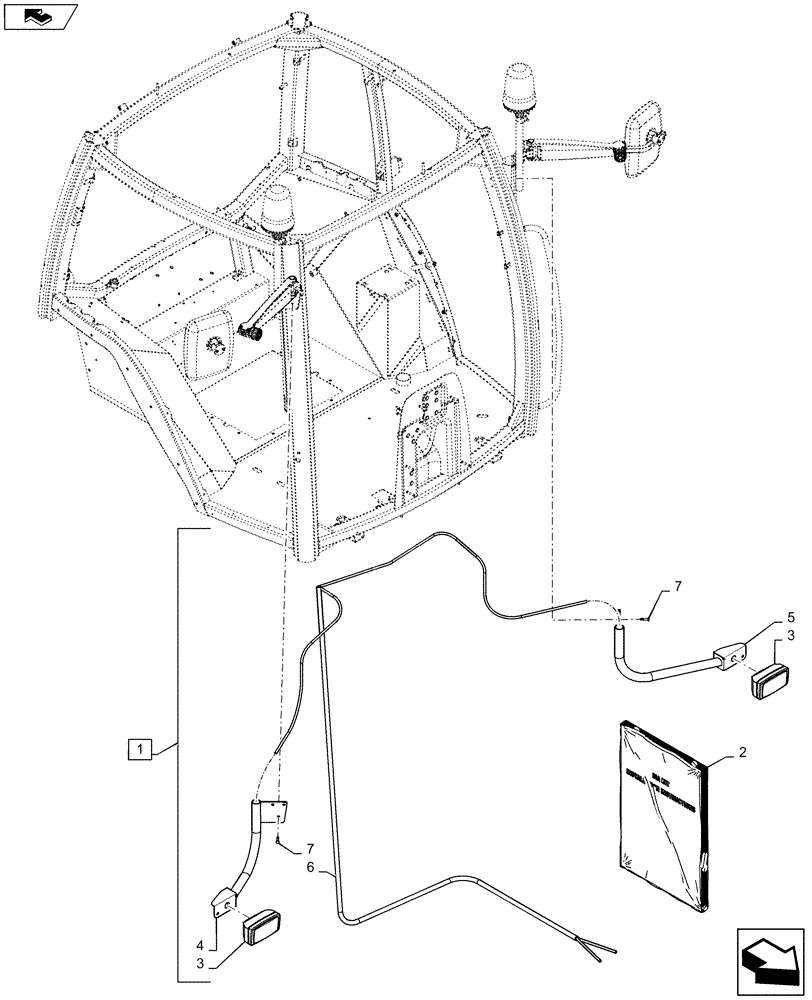

Схема запчастей Case IH MAGNUM 225 - (88.055.06) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP (88) - ACCESSORIES
3
6
1
2
4
3
7
7
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87602048

DIA KIT, TRACTOR

Front Hitch Headlamps, RH Dip, Incl 2- 7

1шт.

2

87604169

INSTRUCTION

Cost Reduction Front Hitch Light Harness

1шт.

3

87403655

HEADLAMP,Halogen, 12V, 55W, Clear

2шт.

4

87378018

BRACKET

RH Front Hitch Light

1шт.

5

87378019

BRACKET

LH Front Hitch Light

1шт.

6

87603616

HARNESS

Front Hitch Headlights

1шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.
