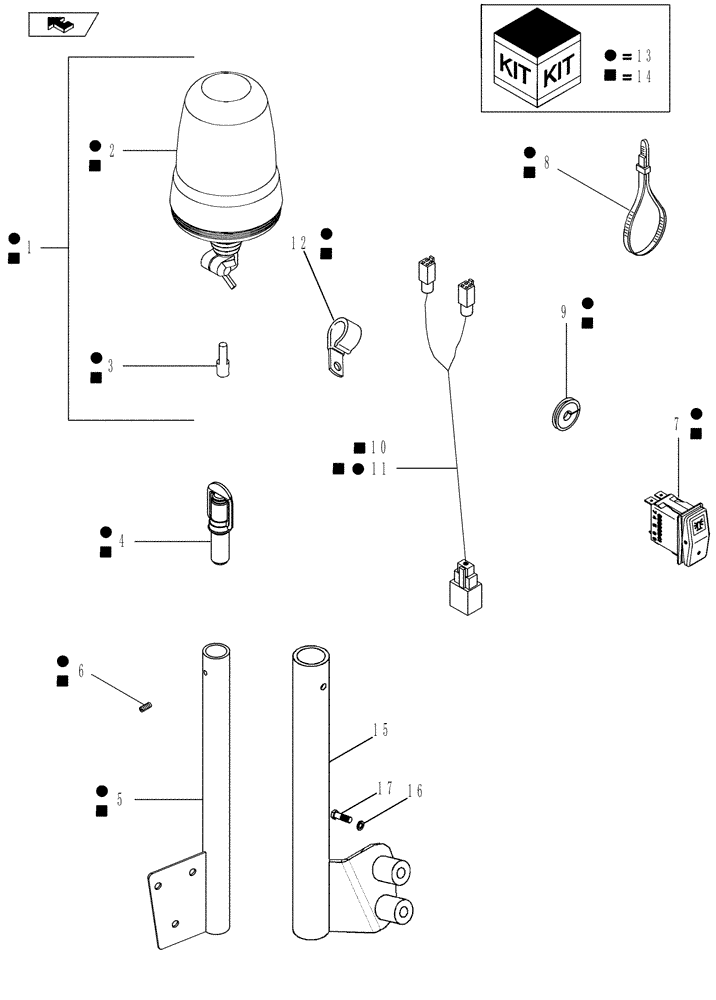

Запчасти Case IH MAGNUM 225 (55.514.01) - LAMP, BEACON (55) - ELECTRICAL SYSTEMS

1

84337818

BEACON

Incl 2, 3

1шт.

2

82020775

LENS

Amber

1шт.

3

3125705R1

BULB

Beacon

1шт.

4

244106A1

ELEC CONNECTOR

Adapter

1шт.

5

450672A1

BRACKET

1шт.

6

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

1шт.

7

87414325

SWITCH

Beacon-Strobe

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

9

182045A1

GROMMET

2шт.

10

447666A1

HARNESS

Dual Beacon Jumper

1шт.

11

328501A1

HARNESS

Adapter

1шт.

12

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

13

719639006

DIA KIT, TRACTOR

Single Beacon light, Left Hand Mount, Inc. 1 - 9, 11, 12

1шт.

14

719622006

DIA KIT, TRACTOR

Dual Beacon Light, Left and Right Mount, Inc. 1 - 12

1шт.

15

84303677

BRACKET

Right Hand

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
