Запчасти Case IH MAGNUM 225 (55.404.04) - LAMPS, REAR FENDER & REMOTE HITCH SWITCH (55) - ELECTRICAL SYSTEMS

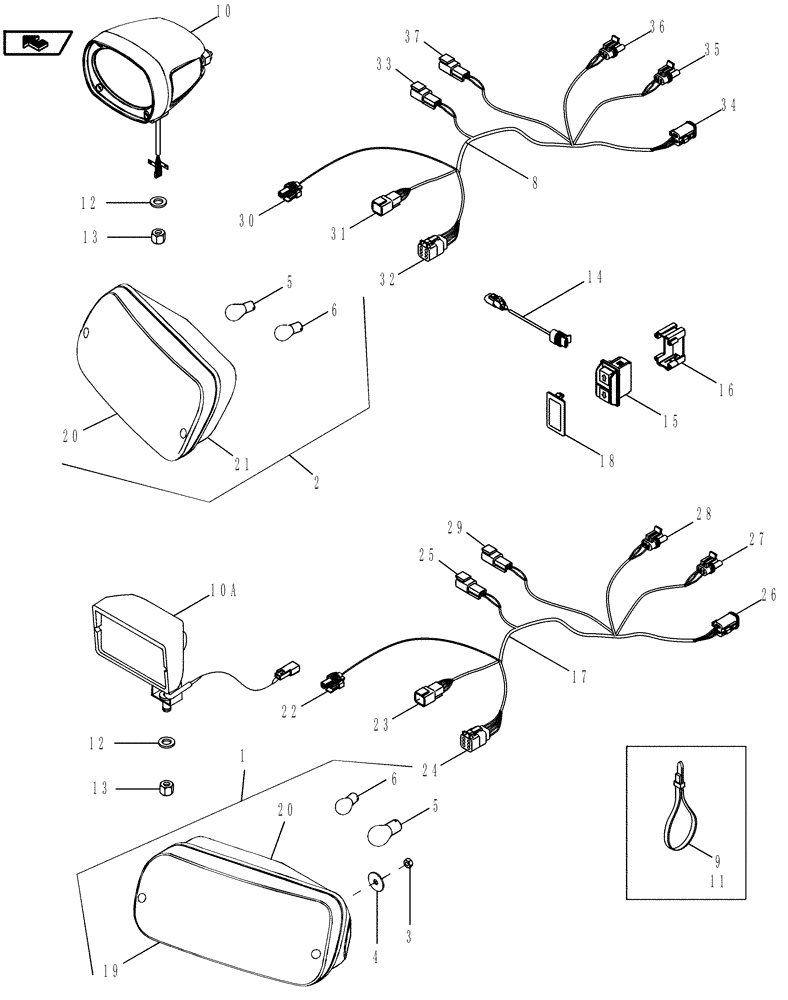

Схема запчастей Case IH MAGNUM 225 - (55.404.04) - LAMPS, REAR FENDER & REMOTE HITCH SWITCH (55) - ELECTRICAL SYSTEMS
6
28
6
24
4
19
12
11
30
27
29
15
1
34
20
32
9
31
home
14
20
13
33
36
5
23
26
16
2
22
5
35
18
10
13
17
37
12
10a
3
8
25
21

Артикул

Название

Примечание

Количество

1

82026301

TAIL LAMP,12V, 21W, Amber/Red

Right Hand, Combination, Incl 5, 6, 19, 21

1шт.

2

82026300

TAIL LAMP,12V, 21W, Amber/Red

Left Hand, Combination, Incl 5, 6, 20, 21

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

4

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

5

14148090

BULB,PY21W, 12V, 21W

1шт.

6

14144690

BULB,P21/5W, 12V, 21/5W

2 Filament

1шт.

8

84154375

HARNESS

Left Hand, Incl 30 - 37

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

10

447754A2

WORK LAMP,HID, 12V, 55W, Clear

1-2шт.

10a

431025A1

WORK LAMP,Halogen, 12V, 55W, Clear

1-2шт.

11

347610A1

ANCHOR

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

14

87363665

WIRE HARNESS

Hitch Switch Extension

2шт.

15

87452577

SWITCH

Remote Hitch, Up/Down

2шт.

16

220416A2

CLAMP

Hitch Switch Retainer

2шт.

17

84154374

HARNESS

Right Hand, Incl 22 - 29

1шт.

18

82022763

PLUG

2шт.

19

87357816

LENS

Right Hand, Red / Amber

1шт.

20

87357815

LENS

Left Hand

1шт.

21

87357827

SEAL

Lamp

1шт.

22

182066A1

CONNECTOR, ELEC

1-Pin, 40M

1шт.

23

225350C1

ELEC CONNECTOR,Male, 6 Pin

20F Chassis Harness

1шт.

24

87382919

WIRE CONNECTOR,Male, 6 Cavities

397M Auxillary Harness

1шт.

25

225316C1

ELEC CONNECTOR,Female, 2 Pin

235M Standard Optional Work Light

1шт.

26

426708A1

ELEC CONNECTOR

4-Pin, 233M Stop, Tail, Turn, Warning Light

1шт.

27

291719A1

CONNECTOR, ELEC

3-Pin, 402F Remote PTO Switch

1шт.

28

291719A1

CONNECTOR, ELEC

3-Pin, 401F Remote Link Switch

1шт.

29

222136A1

ELEC CONNECTOR,Male, 2 Pin

234F Wide Marker Lights

1шт.

30

182066A1

CONNECTOR, ELEC

1-Pin, 41M

1шт.

31

87382918

WIRE CONNECTOR,Female, 6 Cavities

21F Chassis Harness

1шт.

32

87382920

WIRE CONNECTOR,Female

6-Pin, 396F Auxillary Harness

1шт.

33

225316C1

ELEC CONNECTOR,Female, 2 Pin

230M Standard Optional Work Light

1шт.

34

426708A1

ELEC CONNECTOR

4-Pin, 228M Stop, Tail, Turn, Warning Light

1шт.

35

222136A1

ELEC CONNECTOR,Male, 2 Pin

229F Wide Marker Lights

1шт.

36

291719A1

CONNECTOR, ELEC

3-Pin, 401F Remote Link PTO

1шт.

37

291719A1

CONNECTOR, ELEC

3-Pin, 399F Remote Link Switch

1шт.

Выбрано товаров: 37
