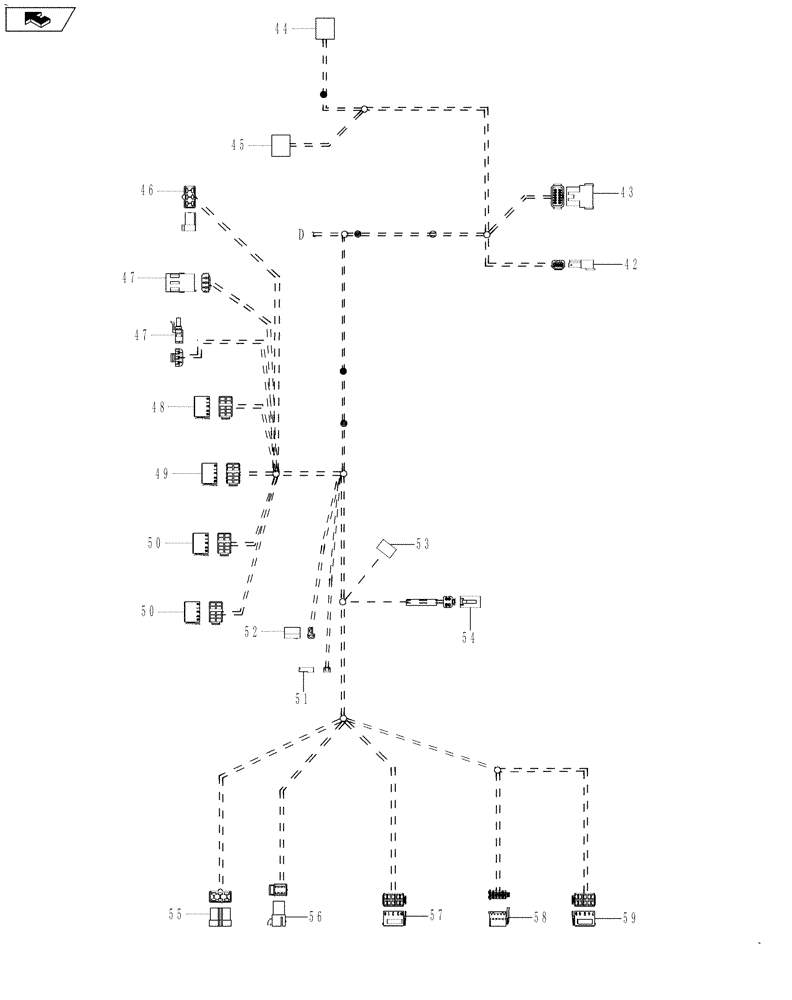

Запчасти Case IH MAGNUM 225 (55.100.17[03]) - HARNESS, CAB (55) - ELECTRICAL SYSTEMS

84332917

HARNESS

Cab, Continued, Inc. 42 - 59

1шт.

42

276426A1

ELEC CONNECTOR,Male, 3 Pin

Autoguidance Power to Codi, 420F, 3 Pin

1шт.

43

223690A1

CONNECTOR, ELEC

CONNECTOR To Codi Jumper Harness, 421F, 12 Pin

1шт.

44

87382923

ELEC CONNECTOR,Male, 10 Cavities

To Autoguidance Harness, 408M, 10 Pin

1шт.

45

87382919

WIRE CONNECTOR,Male, 6 Cavities

To ISO 11783 Harness, 273M, 6 Pin

1шт.

46

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR Blower Switch, 126F, 6 Pin

1шт.

47

245484C1

ELEC CONNECTOR,3 Pin

ATC Blower, 124F, , Hvac Temperature Control, 125M, 3 Pin 3 Pin

2шт.

48

87426882

CONNECTOR, ELEC

CONNECTOR Defog Switch, 398M, 10 Pin

1шт.

49

87426892

CONNECTOR, ELEC

CONNECTOR Air Conditioning Switch, 123M, 3 Pin

1шт.

50

87426886

CONNECTOR, ELEC

CONNECTOR Air Conditioning Switch, 128M, 10 Pin, EHR/EDC Switch, 245M, 10 Pin

2шт.

51

279658A1

CONNECTOR, ELEC

CONNECTOR 131B

1шт.

52

877291R1

ELEC CONNECTOR,Female

Cigar lighter, 131A, 2 Pin

1шт.

53

182064A1

CONNECTOR, ELEC

CONNECTOR 1251F, 1 Pin

1шт.

54

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Right Side Wiper, 98M, 4 Pin

1шт.

55

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR Front Wiper, 127F, 6 Pin

1шт.

56

227393A1

CONNECTOR, ELEC

CONNECTOR Intermediate Front Wiper, 178F, 6 Pin

1шт.

57

87426882

CONNECTOR, ELEC

CONNECTOR Strobe/Beacon, 129M, 10 Pin

1шт.

58

375601A1

CONNECTOR, ELEC

CONNECTOR Power Mirrors, 130M, 10 Pin

1шт.

59

87426885

CONNECTOR, ELEC

CONNECTOR 122M, 10 Pin

1шт.
