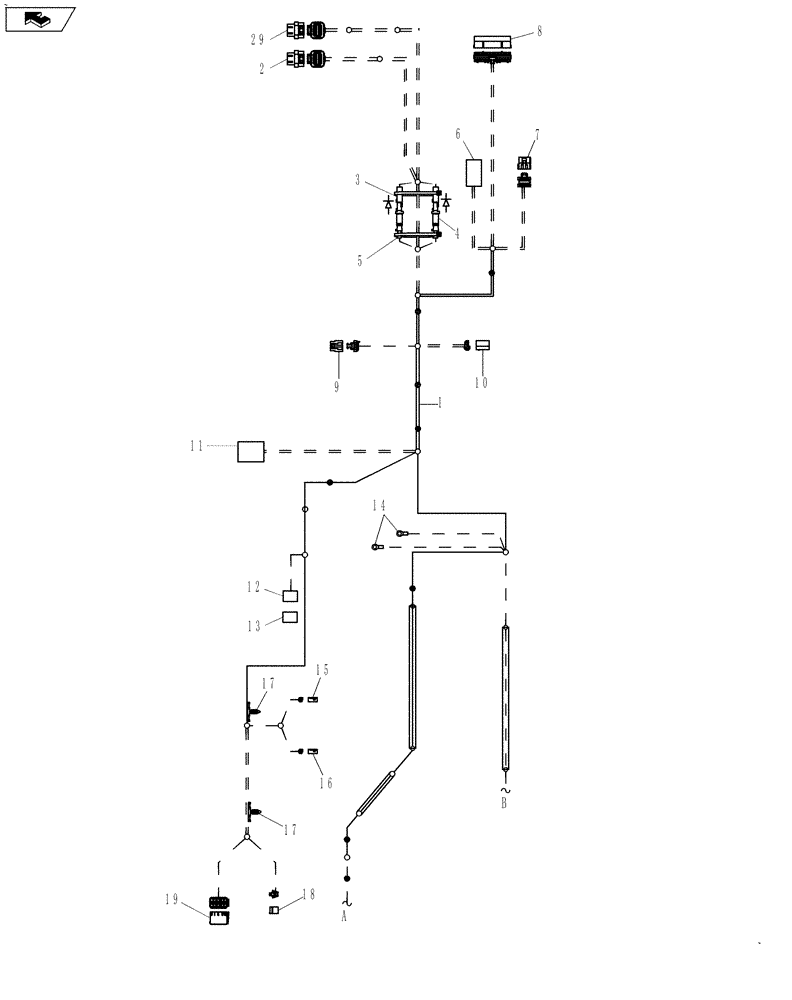

Запчасти Case IH MAGNUM 225 (55.100.17[01]) - HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

84332917

HARNESS

Cab, Inc. 2 - 19, 29

1шт.

2

NSS

NOT SOLD SEPARAT

ICU3 CN3, 427M, 26 Pin

1шт.

3

739070C1

CONNECTOR, ELEC

CONNECTOR 267F, 268F

2шт.

4

113699A1

RECTIFIER

267, 268

2шт.

5

631801C1

CONNECTION

267M, 268M

2шт.

6

87382919

WIRE CONNECTOR,Male, 6 Cavities

Power Mirror, 111M, 6 Pin

1шт.

7

197503A1

CONNECTOR, ELEC

CONNECTOR Roof Harness, 356M, 8 Pin

1шт.

8

196155A1

CONNECTOR, ELEC

CONNECTOR Roof Harness, 13M, 24 Pin

1шт.

9

227728A1

CONNECTION,ELECTRIC

Aux Power (A-Post), 165M, 3 Pin

1шт.

10

877291R1

ELEC CONNECTOR,Female

Radar, 171M, 2 Pin

1шт.

11

84400777

LOCKING TAB,Wedge Lock

Front To Rear Harness Connection, 60M, 31 Pin

1шт.

12

87702265

ELEC CONNECTOR

Foot Throttle, 164M, 8 Pin

1шт.

13

NSS

NOT SOLD SEPARAT

Cavity Plug

1шт.

14

225037C1

TERMINAL CONNECTOR,19 - 20 mm2

172F, 173F

2шт.

15

227429A1

CONNECTOR, ELEC

CONNECTOR Right Brake, 163M, 2 Pin

1шт.

16

227429A1

CONNECTOR, ELEC

CONNECTOR Left Brake, 162M, 2 Pin

1шт.

17

369917A1

CLIP

2шт.

18

225253C1

CONNECTOR, ELEC

CONNECTOR Ignition Switch, 161F, 6 Pin

1шт.

19

87426885

CONNECTOR, ELEC

CONNECTOR Headlight Switch, 11M, 10 Pin

1шт.

29

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

ICU3 CN3, 427M, 26 Pin

1шт.
