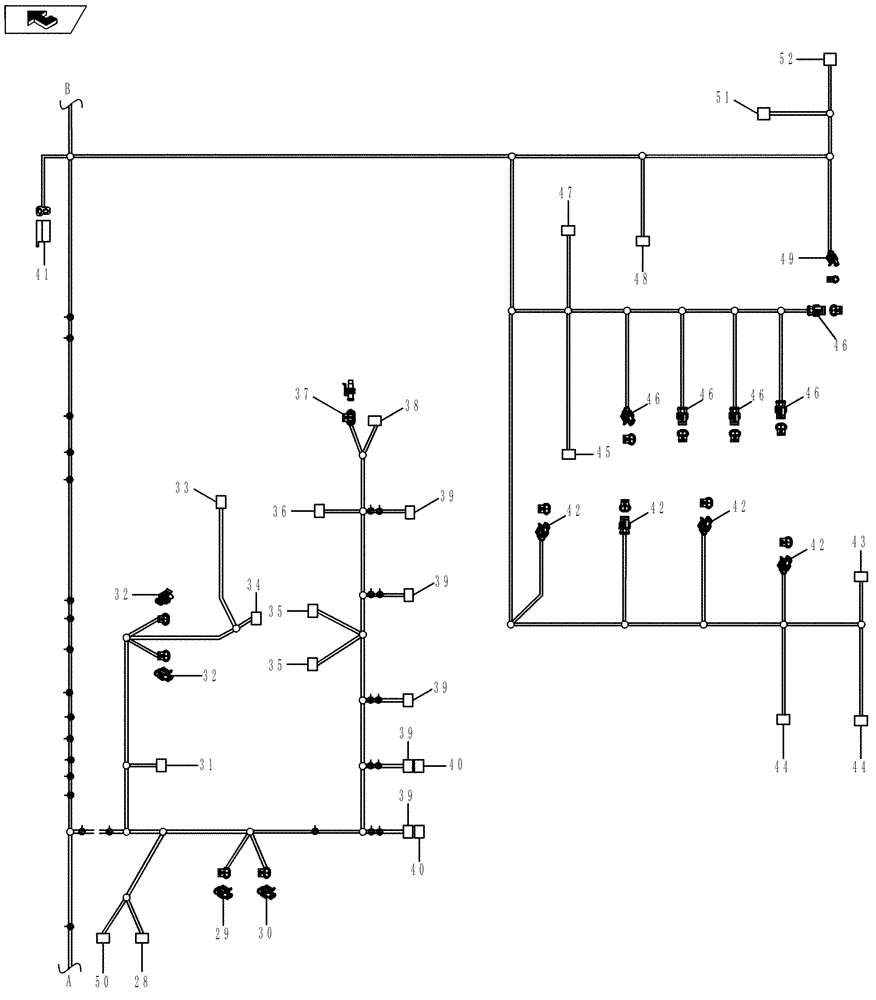

Запчасти Case IH MAGNUM 225 (55.100.03[02]) - HARNESS, CHASSIS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (55) - ELECTRICAL SYSTEMS

84368455

HARNESS

Chassis, Continued, Inc. 28 - 52

1шт.

28

87698223

MULTIPOLE CONNECTOR,Male, 7 Pole

Trailer Socket, 253, 7 Pin

1шт.

29

87691973

WIRE CONNECTOR,Female

Rear PTO Solenoid, 276, 2 Pin

1шт.

30

371614A1

ELEC CONNECTOR,Female, 2 Pin

Differential Lock Solenoid, 278, 2 Pin

1шт.

31

82865818

ELEC CONNECTOR

Left Hand Draft Pin, 266, 3 Pin

1шт.

32

371614A1

ELEC CONNECTOR,Female, 2 Pin

2WD Solenoid, 279, 2 Pin, PTO Brake, 277, 2 Pin

2шт.

33

87692837

WIRE CONNECTOR,Female, 3 Pole

Brake Pressure Sender, 1720M, 3 Pin

1шт.

34

87691304

WIRE CONNECTOR,Female

Rockshaft Pot, 267, 3 Pin

1шт.

35

225316C1

ELEC CONNECTOR,Female, 2 Pin

EDC Valve Lower, 269, 2 Pin, EDC Valve Raise, 268, 2 Pin

2шт.

36

82865818

ELEC CONNECTOR

Right Hand Draft Pin, 256, 3 Pin

1шт.

37

87691304

WIRE CONNECTOR,Female

PTO Twist Sensor, 262, 3 Pin

1шт.

38

82865818

ELEC CONNECTOR

PTO Speed Sensor, 251, 3 Pin

1шт.

39

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

EHR 1, 2, 3, 4, 5, 305, 306, 307, 308, 309, 4 Pin

5шт.

40

87694154

CONTACT HOUSING,Male, 4 Pole

EHR 4, 5, 308, 309

2шт.

41

872290R1

ELEC CONNECTOR,Male

Cab Blower, 90F, 2 Pin

1шт.

42

371614A1

ELEC CONNECTOR,Female, 2 Pin

F4 Solenoid, 641, F3 Solenoid, 638, R1 Solenoid, 643, Dump Solenoid, 358 2 Pin

4шт.

43

87309480

ELEC CONNECTOR

Transmission Oil Temperature Sensor, 290, 2 Pin

1шт.

44

198456A1

ELEC CONNECTOR,Female

Clutch A Pressure, 546, 3 Pin, Clutch B Pressure, 547, 3 Pin

2шт.

45

87692837

WIRE CONNECTOR,Female, 3 Pole

Transmission Oil Pressure, 360, 3 Pin

1шт.

46

371614A1

ELEC CONNECTOR,Female, 2 Pin

R2 Solenoid, 264, F1 Solenoid, 637, F2 Solenoid, 639, Clutch Solenoid B, 636, Clutch Solenoid A, 635, 2 Pin

4шт.

47

87694154

CONTACT HOUSING,Male, 4 Pole

Can Terminator, 920, 4 Pin

1шт.

48

198456A1

ELEC CONNECTOR,Female

Vane Pump Pressure, 1284, 3 Pin

1шт.

49

8602417

TERMINAL CONNECTOR,Female

Low Hydraulic Charge Pressure Switch, 473, 1 Pin

1шт.

50

87695584

CONTACT HOUSING,Male, 2 Cavities

Backup Alarm, 701, 2 Pin

1шт.

51

82012083

WIRE CONNECTOR,Female

Transmission Output Speed, 1283, 2 Pin

1шт.

52

87679438

WIRE CONNECTOR,Female

HPL Hydraulic Filter Blocked Vacuum Switch, 474, 2 Pin

1шт.
