Запчасти Case IH MAGNUM 225 (55.100.01) - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

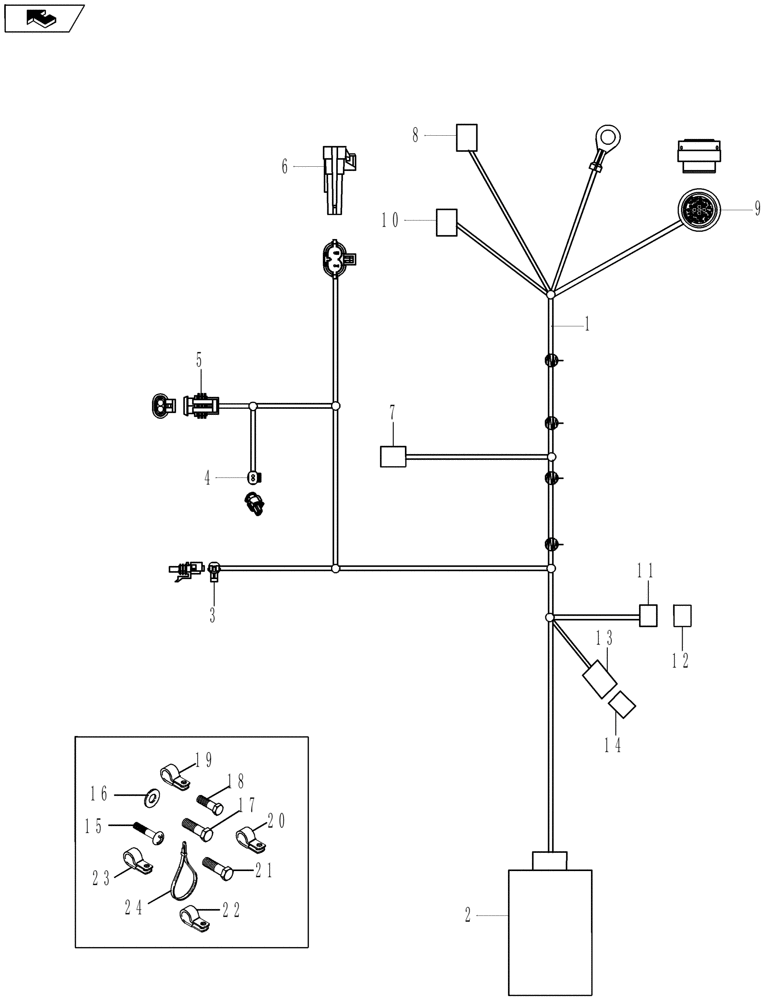

Схема запчастей Case IH MAGNUM 225 - (55.100.01) - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS
5
17
1
16
10
2
22
6
9
24
4
2
8
15
23
12
19
18
7
11
14
20
21
13
1
3

Артикул

Название

Примечание

Количество

1

84372472

HARNESS

Engine, Inc. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

EMU, 2008M, 22 Pin

1шт.

3

87693744

WIRE CONNECTOR

A/C Clutch, 2003F

1шт.

4

84192117

ELEC CONNECTOR

Coolant Flow Solenoid

1шт.

87709655

BLANK-OFF PLUG

1шт.

84190318

TERMINAL CONNECTOR

Tin, If Used

1шт.

84190319

TERMINAL CONNECTOR

Tin, If Used

1шт.

84142302

SEAL

Green

2шт.

87709655

BLANK-OFF PLUG

Blue

1шт.

5

87687241

CONTACT HOUSING,Female, 2 Pole

Grid Heater Relay, 2004F, 2 pin

1шт.

6

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C Pressure Switch, 2006F, 2 Pin

1шт.

7

87709663

ELEC CONNECTOR,Female, 3 Cavities

WIF Sensor, 2009M, 3 Pin

1шт.

8

NSS

NOT SOLD SEPARAT

SENSOR, Humidity, 4 Pin

1шт.

9

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Engine to FPS Chassis, 2015F, 27 Pin

1шт.

10

87709663

ELEC CONNECTOR,Female, 3 Cavities

Torque Sensor, 289, 3 pin

1шт.

11

87382918

WIRE CONNECTOR,Female, 6 Cavities

Front Axle, 2000M, 6 Pin

1шт.

12

87382919

WIRE CONNECTOR,Male, 6 Cavities

Cavity plug

1шт.

13

87382910

WIRE CONNECTOR,Female, 3 Cavities

Steering Sensor, 2011F, 3 pin

1шт.

14

87382911

WIRE CONNECTOR,Male, 3 Cavities

Cavity Plug

1шт.

15

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

16

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

18

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

19

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

20

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

21

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

23

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

Выбрано товаров: 29
