(41.200.09) - VALVE ASSEMBLY, AUTOGUIDANCE WITH CVT

Запчасти Case IH MAGNUM 225 (41.200.09) - VALVE ASSEMBLY, AUTOGUIDANCE WITH CVT (41) - STEERING

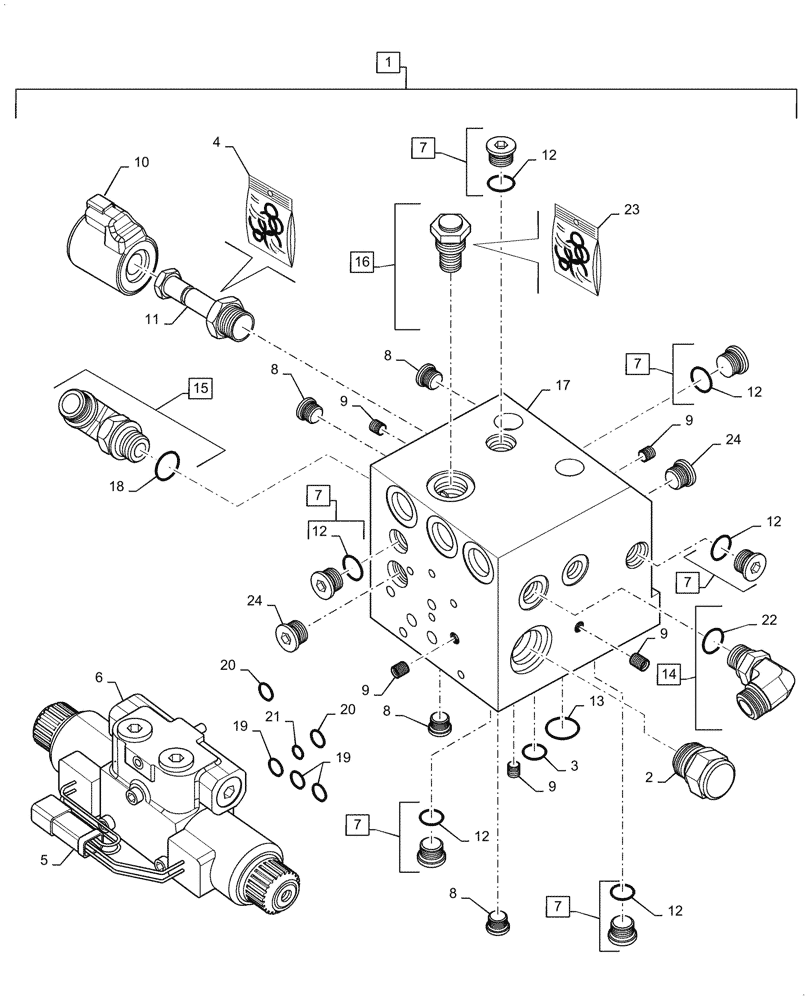

Схема запчастей Case IH MAGNUM 225 - (41.200.09) - VALVE ASSEMBLY, AUTOGUIDANCE WITH CVT (41) - STEERING
12
5
7
17
19
15
12
9
3
7
8
10
11
9
20
8
7
8
16
19
23
13
22
9
12
21
9
18
24
9
14
1
7
12
7
20
8
6
7
12
2
24
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84259183

HYDRAULIC VALVE

Autoguidance, Incl 2 - 24

1шт.

2

87386344

VALVE

Shuttle Check, Spool Type

1шт.

3

122014

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

4

84261468

SEAL KIT

Solenoid Valve

1шт.

5

87694154

CONTACT HOUSING,Male, 4 Pole

1шт.

6

84259231

SOLENOID VALVE

DMV

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl 26

7шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

4шт.

9

87475078

EXPANSION PLUG

5шт.

10

87623908

COIL ASSY.

1шт.

11

84259230

SOLENOID VALVE

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

13

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

To Steering Valve; Ports R, L, T, P

4шт.

14

87490183

FITTING

M14 x -6 STC, Incl 22

1шт.

15

87491814

FITTING

M18 x -8 STC, Incl 18

1шт.

16

84259236

CHECK VALVE

Incl 23

1шт.

17

NSS

NOT SOLD SEPARAT

MANIFOLD, Valve Body, Incl in 1

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Solenoid Valve to Valve Body

3шт.

20

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

Solenoid Valve to Valve Body

2шт.

21

511836

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

Solenoid Valve to Valve Body

1шт.

22

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

304418A1

SEAL KIT

1шт.

24

84586110

PLUG

2шт.
