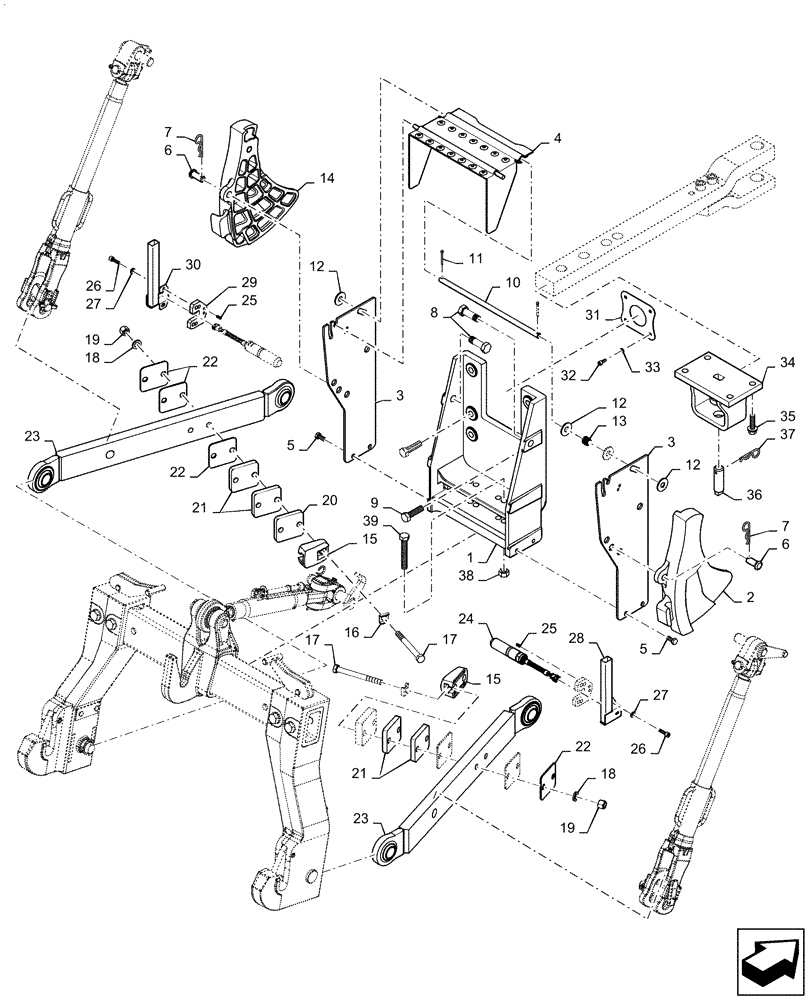

Запчасти Case IH MAGNUM 225 (37.110.AC[01]) - VAR- 420525 - 3 POINT HITCH - SOLID BALL EDC 7200KG (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47465601

BRACKET

Rear Drawbar Support

1шт.

2

293792A5

CAM

RH Sway Limiter

1шт.

3

47399161

SHIELD

PTO Side

2шт.

4

379252A2

SHIELD

PTO Top Weld

1шт.

5

514-864

BOLT,Hex, M12 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

6

84553350

PIN

Headed, 3/4 x 1-3/4 1.484

2шт.

7

486830R1

COTTER PIN

Quick Attach

2шт.

8

87639785

BOLT,Hex, M20 x 60mm, Cl 8.8

Lock, M20 x 60 Full 10.9 ZND

2шт.

9

84591617

BOLT,Hex, M18 x 1.5 x 65mm, Cl 12.9

M18 x 1.5 x 65 12.9 DAC

6шт.

10

225672A1

ROD

PTO Shield Pivot

1шт.

11

733-5040

COTTER PIN,M5 x 40

2шт.

12

495-21069

WASHER,5/8"

4шт.

13

179657A2

SPRING

Compresssion

1шт.

14

293789A5

CAM

LH Sway Limiter

1шт.

15

301248A2

BUMPER

Cam Sway Limiter

2шт.

16

47522058

RETAINER

M16 Bolt Head

4шт.

17

827-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

4шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

19

832-10416

NUT,M16 x 2, Cl 8

4шт.

20

87332342

PLATE

Sway Block

2шт.

21

87332334

PLATE

Sway Block

4шт.

22

87332350

PLATE

Sway Block

6шт.

23

84203465

LOWER LINK

Hitch

2шт.

24

87661279

SENSOR

Draft Pin

2шт.

25

14606470

LOCK PIN,Slotted Spring, M8 x 20.00mm

2шт.

26

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

4шт.

27

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

4шт.

28

47125909

SHIELD

EDC RH

1шт.

29

5191331

PLATE

2шт.

30

47125908

SHIELD

EDC LH

1шт.

31

47131825

GUARD

PTO Seal

1шт.

32

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

33

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

34

87561340

HITCH BRACKET

Pivot Rear Towhook

1шт.

35

87561332

BOLT,Flng, M18 x 1.5 x 55mm, Cl 12.9

4шт.

36

87561338

PIN,32mm OD x 156.5mm L

Hitch

1шт.

37

82000094

SPRING,40mm OD x 142mm L

Spring, Drawbar

1шт.

38

832-10416

NUT,M16 x 2, Cl 8

2шт.

39

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

2шт.
