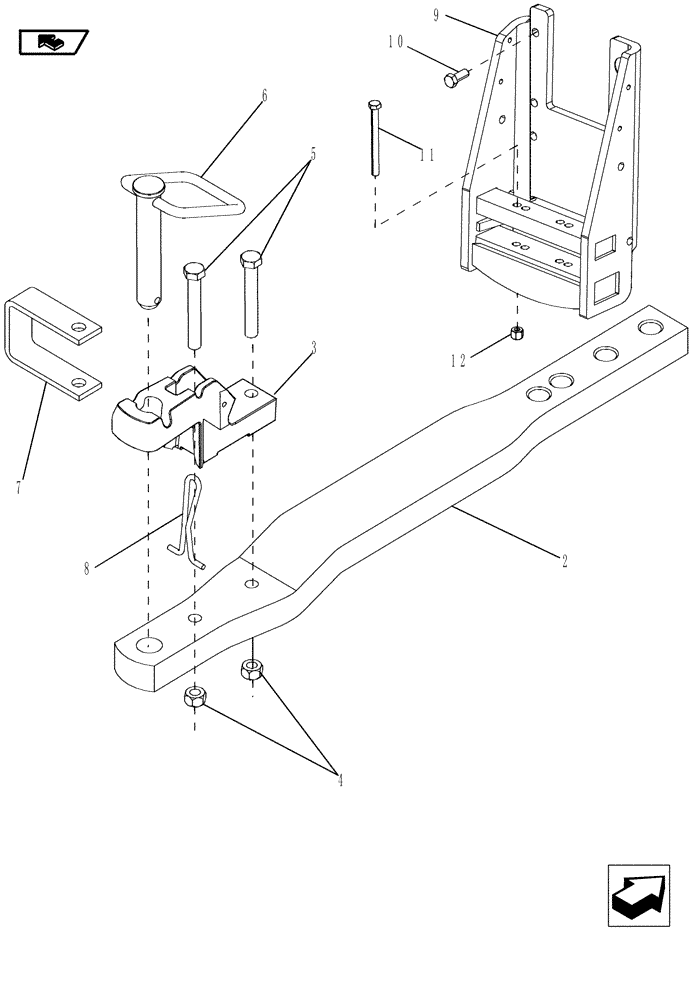

Запчасти Case IH MAGNUM 225 (37.100.12) - DRAWBAR & HAMMERSTRAP CAT III (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84229800

DRAWBAR

Assembly, Incl 2 - 8

1шт.

2

84229799

SWINGING DRAWBAR

1шт.

3

232615A3

STRAP,228.98mm L x 76.2mm W x 50.8mm Thk, 91.95mm Offset

Cat III

1шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

2шт.

6

232616A3

HITCH PIN,38.1mm OD x 226mm L

1шт.

7

449666A1

SUPPORT ASSY.

1шт.

8

232617A1

LATCH

1шт.

9

84141774

HOLDER

1шт.

9

47465601

BRACKET

Use With Telescopic EDC Three Point Hitch, Not Illustrated

1шт.

10

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

6шт.

11

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

M16 x 170 10.9

2шт.

12

832-10416

NUT,M16 x 2, Cl 8

2шт.
