Запчасти Case IH MAGNUM 225 (35.204.28[01]) - CASE DRAIN, POWER BEYOND (35) - HYDRAULIC SYSTEMS

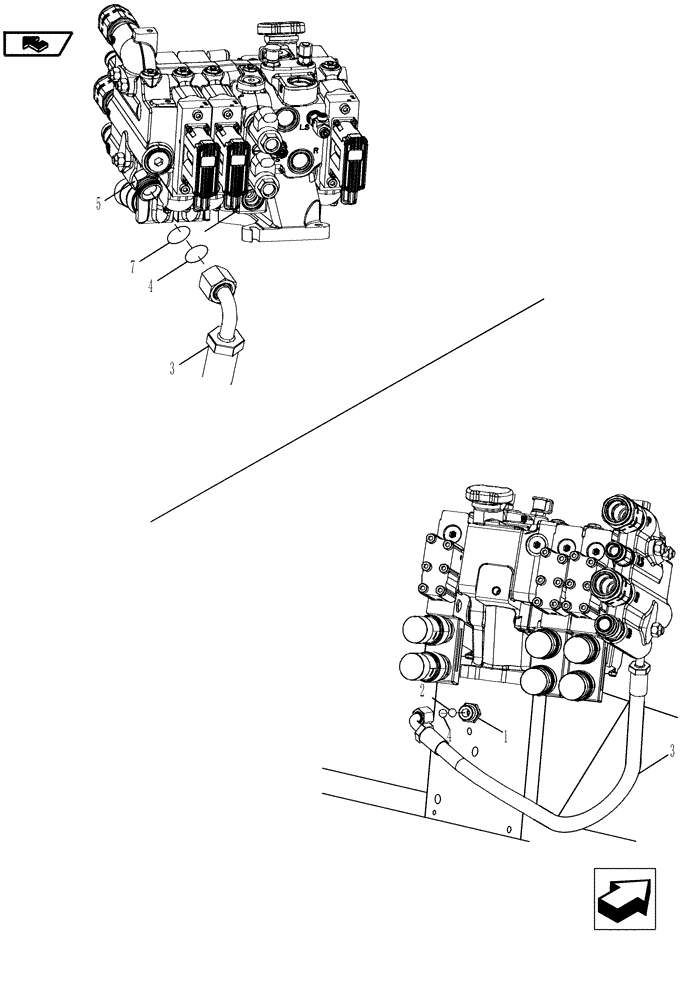

Схема запчастей Case IH MAGNUM 225 - (35.204.28[01]) - CASE DRAIN, POWER BEYOND (35) - HYDRAULIC SYSTEMS
3
5
3
1
home
4
4
7
2

Артикул

Название

Примечание

Количество

1

84188738

HYD CONNECTOR

Inc. 2

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

84187163

HYDRAULIC HOSE

Drain, Inc. 4

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 6, 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

(Not Shown)

1шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
