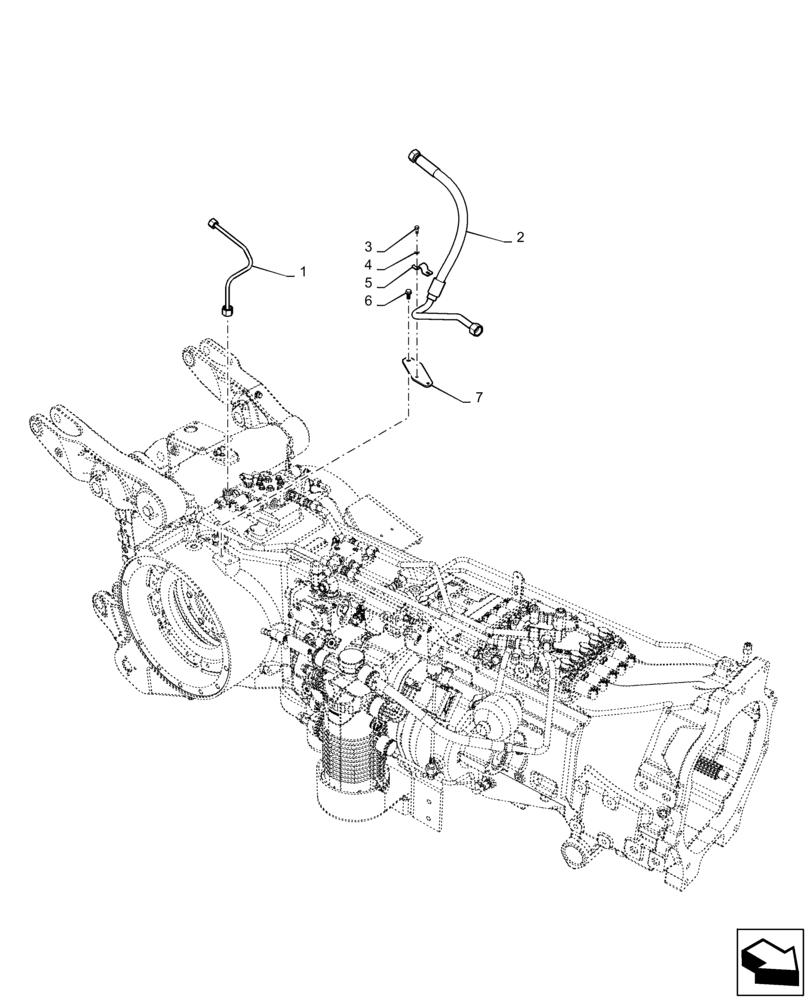

Запчасти Case IH MAGNUM 225 (35.100.04[03]) - LIFTER LINES, REMOTE CONTROL VALVES MAIN SUPPLY & LOAD SENSE LINE, WITH POWERSHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

87370311

HYD TUBE

Low Pressure, EHS Remotes

1шт.

2

84597316

PIPE

Delivery, Remotes

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

47491060

BRACKET

1шт.

6

412159

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

47491059

BRACKET

1шт.
