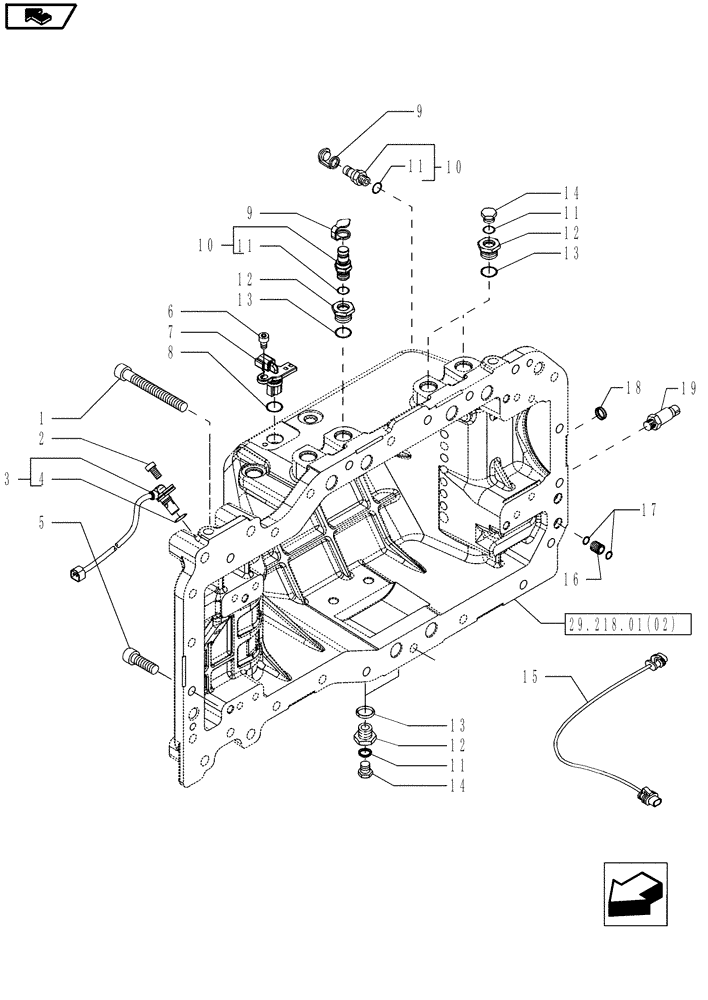

Запчасти Case IH MAGNUM 225 (29.218.01[01]) - TRANSMISSION, HYDROSTATIC PUMP, SENSORS AND CAPS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (29) - HYDROSTATIC DRIVE

1

14332724

HEX SOC SCREW,M12 x 1.25 x 120mm, Cl 8.8

M12 x 1.25 x 120

1шт.

2

47627370

HEX SOC SCREW,Hex Soc, M6 x 14, Cl 8.8

1шт.

3

84243033

SENSOR

Ring Gear Speed; Incl 4

1шт.

4

87492478

O-RING,8.56mm ID x 1.07mm Width

1шт.

5

14331224

BOLT,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

22шт.

6

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

7

87673029

SOCKET/RECEPTACLE,17.15mm OD x 48.4mm L

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2.62 x 17.12

1шт.

9

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

10

5185423

COUPLING

Inc. 11, Serial Range: -`0

4шт.

Qty= 6 with 50KPH Transmission

1шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

8шт.

12

87661594

REDUCER FITTING

6шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

14

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

4шт.

15

87677187

WIRE HARNESS

Hydrostat

1шт.

16

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

2шт.

17

14453080

O-RING,0.426" ID x 0.07"

4шт.

18

14328501

PLUG,M16, Tapered

1шт.

19

87752203

PRESSURE SWITCH

2шт.
