Запчасти Case IH MAGNUM 225 (27.100.02[01]) - TRANSMISSION BOX, COVERS AND CAPS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (27) - REAR AXLE SYSTEM

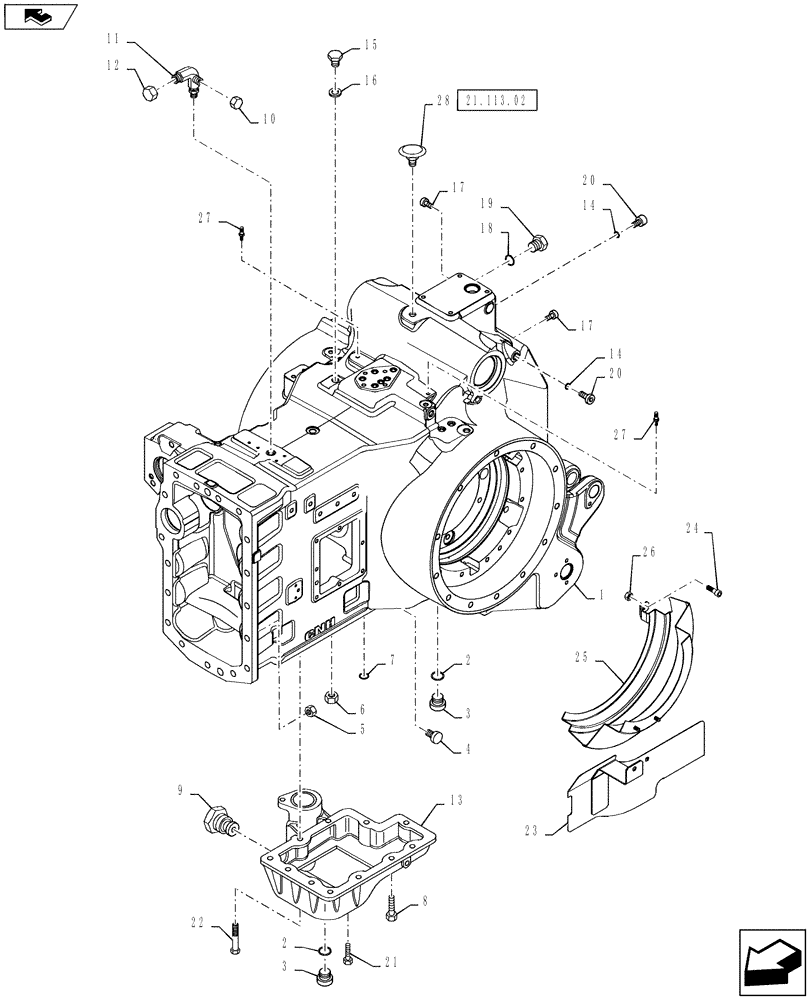

Схема запчастей Case IH MAGNUM 225 - (27.100.02[01]) - TRANSMISSION BOX, COVERS AND CAPS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (27) - REAR AXLE SYSTEM
12
3
13
28
7
6
15
9
17
24
20
home
2
27
21
14
26
20
16
17
25
27
3
10
4
1
11
18
23
2
19
22
21.113.02
5
14
8

Артикул

Название

Примечание

Количество

1

84316187

TRANSMISSION HOUSING

CVT

1шт.

2

14438285

O-RING,29.5mm ID x 3.0mm

2шт.

3

10119511

PLUG,M33 x 2 x 16, Cl5.8

2шт.

4

5185747

PLUG,1"13/16-12

Heater Hole; Incl 33

1шт.

5

12164121

NUT,M16 x 1.5, Cl 10

17шт.

6

15896214

NUT,M6, Cl 8

4шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

7шт.

9

84142156

VALVE PRESSURE RELIE

1шт.

10

9840575

CAP,13/16" - 16 ORFS

1шт.

11

87608360

HYD CONNECTOR

Brake Boost Return

1шт.

12

9840576

CAP,1" - 14 ORFS

1шт.

13

84134705

COVER

Central Housing, Lower

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

17

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

83957506

PLUG,3/4"

1шт.

20

10119411

PLUG,M18 x 1.5 x 12.00mm

2шт.

21

15541521

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

1шт.

22

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

1шт.

23

84145789

GUARD

Final Drive, CVT

1шт.

24

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

1шт.

25

5198538

SHIELD

Final Drive, CVT

1шт.

26

16100824

NUT,M8, Cl 10

1шт.

27

84319210

STUD

Central Housing Cover

2шт.

28

83925022

BREATHER,.375-18 NPT

1шт.

29

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

30

14048221

NUT,M8 x 1.25, Cl 10

4шт.

31

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

32

84488522

SNAP RING,M85, Int

Type B 85mm DIN 7993

2шт.

33

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
