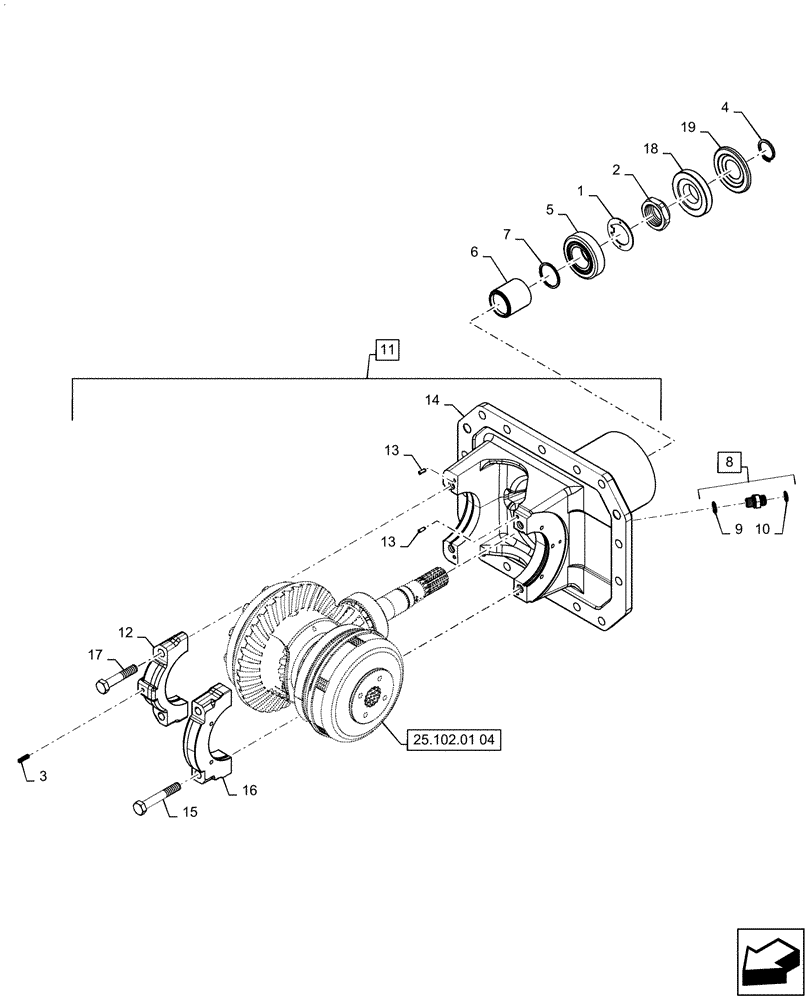

Запчасти Case IH MAGNUM 225 (25.102.01[05]) - DIFFERENTIAL, MFD 12-BOLT CLASS 4 AXLE - ASN ZBRH03334 (25) - FRONT AXLE SYSTEM

1

84345881

SPECIAL WASHER

Pinion Nut

1шт.

2

84289762

NUT,M40,1.5mm Pitch

Pinion

1шт.

3

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

4

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

5

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

6

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

7

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

7

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

7

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

7

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

7

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

7

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

7

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

7

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

7

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

7

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

7

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

7

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

7

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

7

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

7

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

7

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

7

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

7

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

7

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

7

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

7

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

7

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

7

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

7

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

7

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.

8

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 9, 10

1шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

84316269

CARRIER

Incl 12 - 17, Use With Pinion W/Shim, Serial Range: ZBRH03334-ZDRH03784

1шт.

11

47438133

PINION CARRIER

Incl 12 - 17, Use With Pinion W/O Shim, Start Serial: ZDRH03785

1шт.

12

NSS

NOT SOLD SEPARAT

KEEP, Differential Gearing Support, Incl in 11

1шт.

13

4966244

PIN,5mm OD x 15mm L

4шт.

14

NSS

NOT SOLD SEPARAT

CARRIER, Pinion, Incl in 11

1шт.

15

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

16

NSS

NOT SOLD SEPARAT

KEEP, Differential Gearing Support, Incl in 11

1шт.

17

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

2шт.

18

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

19

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

1шт.
