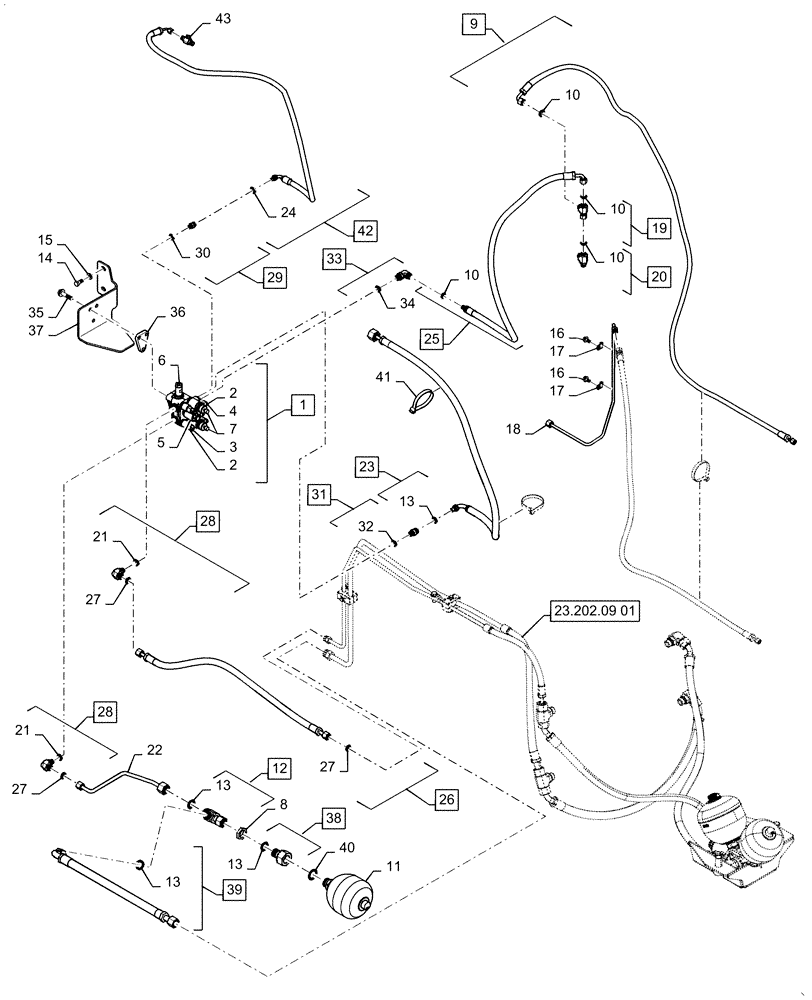

Запчасти Case IH MAGNUM 225 (23.202.09[02]) - CVT - HYRAULIC SYSTEM, SUSPENDED CNH FRONT AXLE CL 4.75 (23) - FOUR WHEEL DRIVE SYSTEM

1

87668716

VALVE

Suspended Axle Control; Incl 2 - 7

1шт.

2

84130917

SOLENOID,68 VDC, 30 Ohm

Solenoid

3шт.

3

84130918

SENSOR

Pressure

2шт.

4

84130919

SOLENOID,Hex 24

2/2 Cartridge Valve, Without Coil

2шт.

4

47608392

SEAL KIT

2/2 Cartridge Valve

1шт.

5

84130920

SOLENOID,Hex 7/8"

3/2 Carridge Valve, Without Coil

1шт.

5

84419450

SERVICE KIT

Seal Kit, 3/2 Cartridge Valve

1шт.

6

84130921

VALVE PRESSURE RELIE

1шт.

6

47608392

SEAL KIT

Relief Valve

1шт.

7

84130922

CAP

Solenoid Manual Override

2шт.

8

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

9

84586690

HOSE,9.53mm ID x 2232mm L, SAE 30R2

Diff Lock Drain; Incl 10

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

11

84414123

ACCUMULATOR,1.4L

1.4L 350 Bar

1шт.

12

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Swivel Run ORFS 20MM; Incl 13

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

14

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

18

84167888

HYD TUBE,0.375" OD

Front Diff Lock Supply

1шт.

19

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Union Tee, ORFS Swivel Run; Incl 10

1шт.

20

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

Incl 10

1шт.

21

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

22

84586687

TUBE

Suspended Axle Valve to Accumulator

1шт.

23

84315190

HYDRAULIC HOSE

Suspended Axle Valve Supply; Incl 13

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

25

84261787

HYDRAULIC HOSE

Suspended Axle Valve Return; Incl 10

1шт.

26

84586688

HOSE,12.7mm ID x 910mm L, SAE 100R17

Suspended Axle Valve Port A; Incl 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

28

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Incl 21, 27

2шт.

29

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

M14 Male ORB x -06 STC; Incl 30

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

87476353

HYD CONNECTOR

M16 ORB - 08 STC; Incl 32

1шт.

32

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

33

87491814

FITTING

Elbow, 90, M18 ORB x -8 STC; Incl 34

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

36

87659339

SPACER

Valve Spacer

1шт.

37

84281727

BRACKET

Suspended Axle Valve Mounting

1шт.

38

84477431

ADAPTER

M33 x 1.5 x 1-3/16 ORFS; Incl 13

1шт.

39

47488354

HYDRAULIC HOSE,19.05mm ID x 585mm L, SAE 100R17

Suspended Axle Valve Port B; Incl 13

1шт.

40

340493A2

SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk

Accumulator

1шт.

41

86991007

CABLE TIE,509mm L

1шт.

42

84314812

HYDRAULIC HOSE

Suspended Axle Valve LS; Incl 24

1шт.

43

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.
