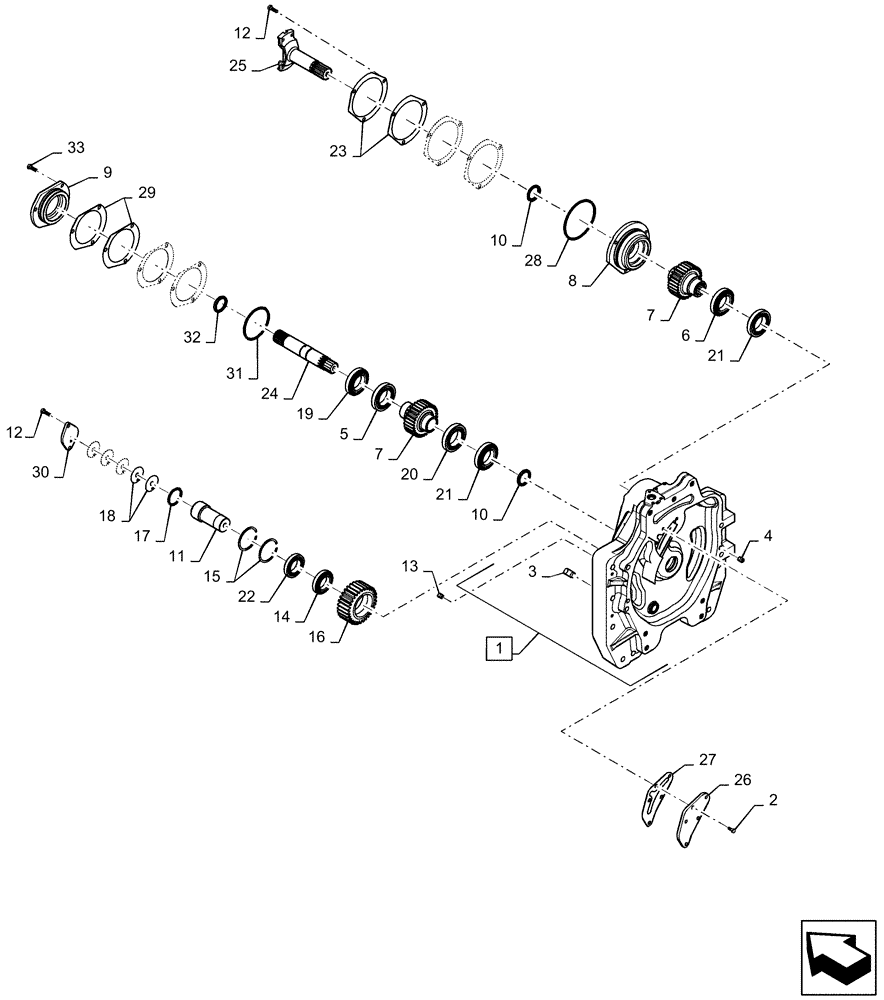

Запчасти Case IH MAGNUM 220 (21.200.AA[03]) - DROP BOX (21) - TRANSMISSION

1

84346298

HOUSING

Dropbox, With Dowels, Incl 3, 4

1шт.

2

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

M10 x 25 With Sealant

5шт.

3

837-20040

DOWEL,M20 x 40

2шт.

4

37-1812

DOWEL,1/2" x 3/4"

2шт.

5

105496H

BEARING CUP,97.63mm OD x 19.45mm W

1шт.

6

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

7

87740760

GEAR SHAFT

Input/Output 30T

2шт.

8

87740761

BEARING CAP,72 mm ID x 145 mm OD x 44.5 mm

Cage, Top Bearing/Gear Support

1шт.

9

47727146

FLANGE

Output

1шт.

10

87740762

OIL SEAL

2шт.

11

87740764

SHAFT ASSY.

Idler Support

1шт.

12

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

13

837-8020

DOWEL,8mm OD x 20mm L

1шт.

14

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

2шт.

15

101-21325

SNAP RING,#325, 3.488", Int

2шт.

16

302554A1

IDLER GEAR

Idler 35T

1шт.

17

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

18

228300A1

SHIM,13.5mm ID x 59mm OD x 0.36mm Thk

Idler Gear, 0.356 mm

1шт.

18

228303A1

SHIM,13.50mm ID x 59mm OD x 0.635mm Thk

Idler Gear, 0.635 mm

1шт.

18

275215A1

SHIM,13.5mm ID x 59mm OD x 0.2mm Thk

Idler Gear, 0.203 mm

1шт.

18

341207A1

SHIM,13.5mm ID x 59mm OD x 0.18mm Thk

Idler Gear, 0.178 mm

1шт.

18

341208A1

SHIM,13.50mm ID x 59mm OD x 0.152mm Thk

Idler Gear, 0.152 mm

1шт.

19

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

1шт.

20

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

21

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

3шт.

22

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

23

228267A1

SHIM,146.4mm ID x 191mm OD x 0.36mm Thk

Input Gear, 0.356 mm

1шт.

23

228270A1

SHIM,146.4mm ID x 191mm OD x 0.64mm Thk

Input Gear, 0.635 mm

1шт.

23

275214A1

SHIM,146mm ID x 191mm OD x 0.2mm Thk

Input Gear, 0.203 mm

1шт.

23

341205A1

SHIM,0.178mm Thk

Input Gear, 0.178 mm

1шт.

23

341206A1

SHIM,146.4mm ID x 191mm OD x 0.15mm Thk

Input Gear, 0.152 mm

1шт.

24

47596928

SHAFT

Drop Box Output

1шт.

25

84201887

SHAFT

Input w/6C Yoke

1шт.

26

87740772

PLATE

Lube Cover

1шт.

27

84128469

GASKET

1шт.

28

238-5161

O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro

1шт.

29

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

Output Gear, 0.356 mm

1шт.

29

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

Output Gear, 0.635 mm

1шт.

29

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

Output Gear, 0.203 mm

1шт.

29

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

Output Gear, 0.178 mm

1шт.

29

341210A1

SHIM,0.152mm Thk

Output Gear, 0.152 mm

1шт.

30

258469A1

COVER PLATE

Idler Shaft

1шт.

31

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

32

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

1шт.
