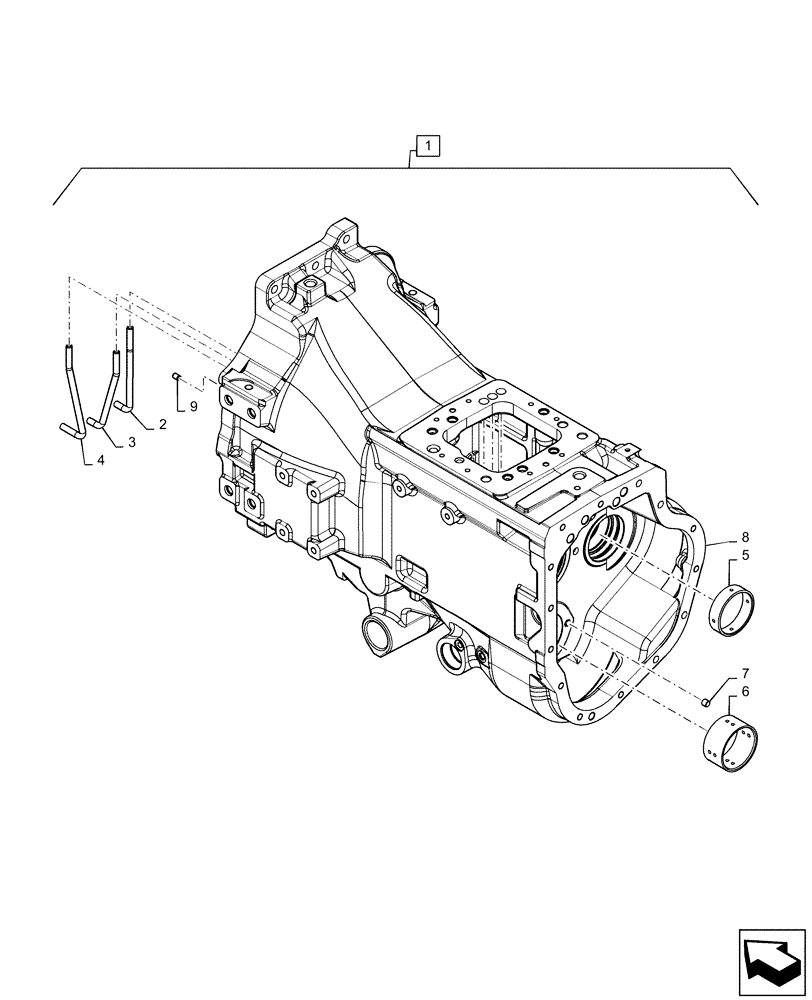

Запчасти Case IH MAGNUM 220 (21.113.AP[01]) - VAR- 429326, 729571 - TRANSMISSION SPEED HOUSING - POWERSHIFT (21) - TRANSMISSION

1

47361978

TRANSMISSION HOUSING

FPS, Incl 2 - 9, Serial Range: -ZGRH02717

1шт.

1

47907174

TRANSMISSION HOUSING

FPS, Incl 2 - 9, Start Serial: ZGRH02718

1шт.

2

5186834

TUBE

Pipe, Internal Clutch

1шт.

3

5186835

TUBE

Pipe, Internal Clutch D

1шт.

4

5186836

TUBE

Pipe, Internal Clutch E

1шт.

5

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

6

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

7

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

8

NSS

NOT SOLD SEPARAT

TRANSMISSION HOUSING, Incl in 1

1шт.

9

5153109

DOWEL,10mm OD x 15mm L

Pin

2шт.
