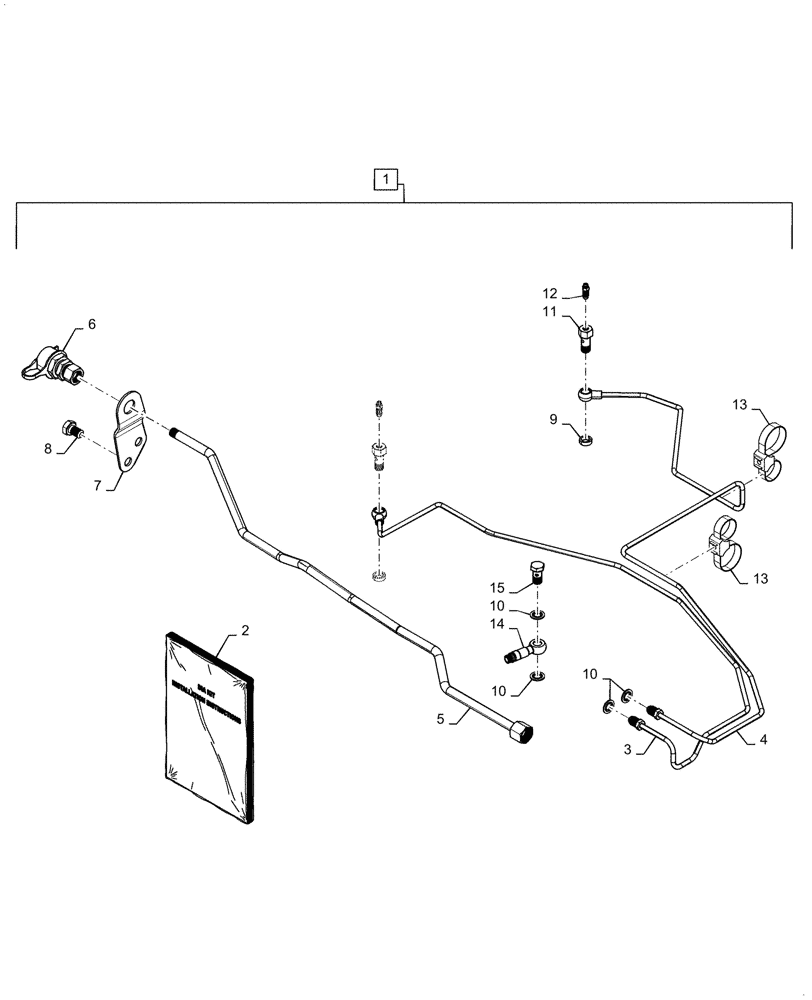

Запчасти Case IH MAGNUM 220 (88.100.35[08]) - DIA KIT, TRACTOR, HYDRAULIC TRAILER BRAKES, PST (88) - ACCESSORIES

1

47787433

KIT

HYD Trailer Brake, Incl 2 - 15

1шт.

2

47787437

INSTRUCTION

1шт.

3

47561788

HYD TUBE

RH

1шт.

4

47561796

HYD TUBE

LH

1шт.

5

47423736

HYD TUBE

TBV

1шт.

6

44015354

QUICK MALE COUPLING

Union Valve

1шт.

7

5196322

BRACKET

Traler Brake Coupler

1шт.

8

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

10

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

11

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

12

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

13

86991000

CLAMP

Dual

2шт.

14

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.
