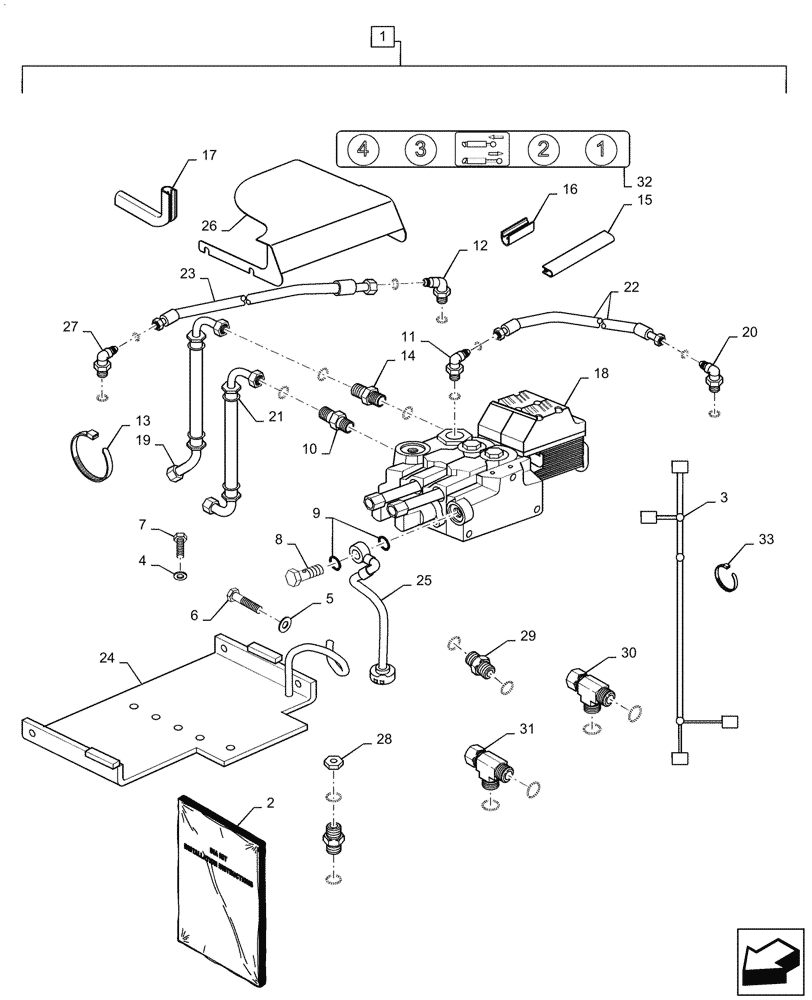

Запчасти Case IH MAGNUM 220 (88.100.35[05]) - DIA KIT, TRACTOR, MID MOUNT VALVES 1ST AND 2ND SECTIONS, PST (88) - ACCESSORIES

1

47463291

DIA KIT, TRACTOR

Mid Mount Valve 1st and 2nd Sections, PST; Incl 2 - 33

1шт.

2

47731795

INSTRUCTION

Mid Mount Valve 1st and 2nd Sections, PST

1шт.

3

47650203

WIRE HARNESS

Mid Mount Valves

1шт.

4

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

6

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

11

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

90 Deg M14 x 1.5 PRB 13/16-16 ORFS

1шт.

12

5194728

90 ELBOW

M22 x 1.5 PRB 1-14 ORFS

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

3шт.

14

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

M14 x 1.5 ORB 11/16-16 ORFS

1шт.

15

82036856

MOLDING,355mm L

Hood Latch Bracket

1шт.

16

82869674

MOLDING,88.5mm L

1шт.

17

83964601

MOLDING,164mm L

1шт.

18

84214464

CONTROL VALVE

EH Mid Mount 2 Slice

1шт.

18

84214464R

REMAN-HYD VALVE

Reman EH Mid Mount 2 Slice

1шт.

18

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

19

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

Pilot MMV

1шт.

20

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

21

47598701

HYDRAULIC HOSE

MMV LS

1шт.

22

87520009

FLEXIBLE HOSE

1шт.

23

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

1шт.

24

87598923

SUPPORT

MMV

1шт.

25

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

MMV Return

1шт.

26

87736308

COVER ASSY

MMV

1шт.

27

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

28

82016749

PLUG,11/16-16 ORFS

Power Steering

1шт.

29

5196844

HYD CONNECTOR

1шт.

30

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.

31

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

1шт.

32

82029712

DECAL

Hydraulic Remote Valve

1шт.

33

86566989

CABLE TIE,208mm L

6шт.
