Запчасти Case IH MAGNUM 220 (44.520.AB[02]) - REAR, WHEEL, HUB, ASSY, 10X335 4" AXLE (44) - WHEELS

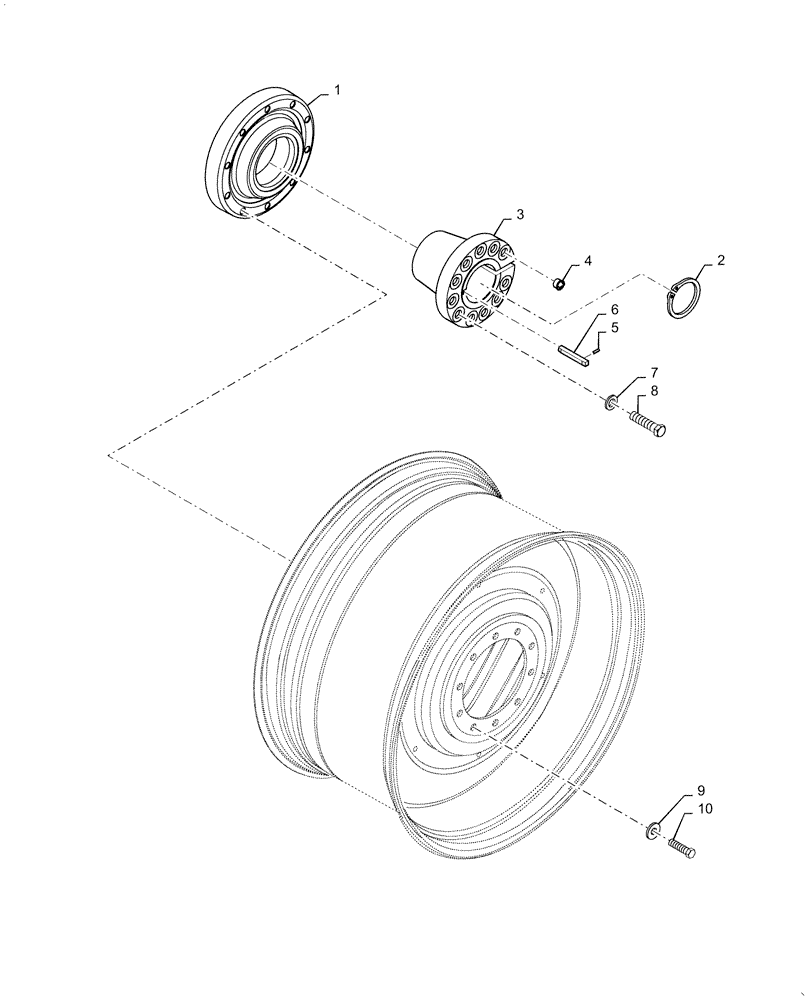

Схема запчастей Case IH MAGNUM 220 - (44.520.AB[02]) - REAR, WHEEL, HUB, ASSY, 10X335 4" AXLE (44) - WHEELS
4
9
10
3
7
2
5
8
6
1

Артикул

Название

Примечание

Количество

1

405812A1

HUB

Wheel 10B 335BC Universal Rev. To 10 Bolt

1шт.

2

800-51100

SNAP RING,M100, Ext, Hvy

2шт.

3

47465390

BUSHING

Wheel Hub, 102mm Axle

1шт.

4

303401A1

PLUG

Bushing Jackbolt

3шт.

5

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

6

A63219

KEY

Rear Wheel To Axle

2шт.

7

86637816

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

6шт.

8

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

10

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

Выбрано товаров: 10
