Запчасти Case IH MAGNUM 220 (05.100.03) - FILTERS & CAPACITIES - TIER 4B (05) - SERVICE & MAINTENANCE

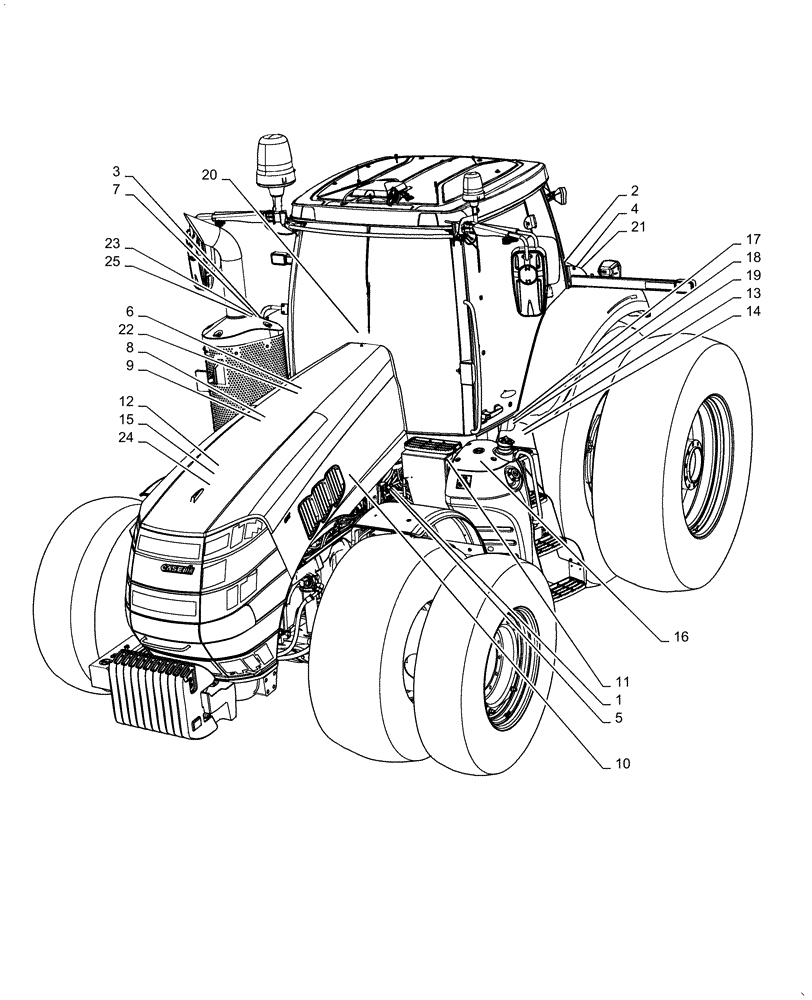

Схема запчастей Case IH MAGNUM 220 - (05.100.03) - FILTERS & CAPACITIES - TIER 4B (05) - SERVICE & MAINTENANCE
18
11
22
23
7
6
3
13
14
21
1
4
15
8
25
16
20
9
24
19
2
10
5
17
12

Артикул

Название

Примечание

Количество

1

87346728

FUEL FILTER

Assy; Auxiliary Separator

1шт.

2

84197114

FILTER

Hyd Oil w/Check Valve

1шт.

3

84242244

FILTER ASSY

Hyd Oil, Complete, CVT; Incl 23

1шт.

4

87714123

FILTER

Solenoid, 100-150 Micron

1шт.

5

336430A1

FUEL FILTER

Auxiliary Separator, 30 Micron Fuel Strainer

1шт.

6

84348875

FILTER ASSY

Complete

1шт.

7

87313049

FILTER ASSY

Hyd Oil, PST; Incl 23

1шт.

8

84579125

AIR FILTER

Engine, Primary

1шт.

9

84579126

AIR FILTER

Engine, Secondary

1шт.

10

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

25 Micron Primary W/Sensor

1шт.

11

47364243

FILTER

Main Denox Filter Kit

1шт.

12

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

5 Micron Secondary

1шт.

13

87684088

CAB FILTER,CAB

Cab

1шт.

14

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

15

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

16

84367903

FILTER

Element, DEF/ADBLUE Line, Set of 200

1шт.

17

87588814

HYDRAULIC OIL FILTER,151mm L

Vane Pump, CVT

1шт.

18

84341286

HYDRAULIC OIL FILTER,289.5mm L

Charge Pump, CVT

1шт.

19

84417139

ELEMENT,267.5mm L, 11 Micron

Charge Pump, CVT

1шт.

At 50 hours service with 84417137 Filter Bowl, 84417139 Element, and 84550359 O-Ring. After that, service with 84417139 Element, and 84417142 O-Ring.

1шт.

20

293615A1

FILTER

Cab, Recirculation

2шт.

21

87433010

BREATHER

Fuel

1шт.

22

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

23

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Kit, Incl Element & Seal

1шт.

24

87304662

BREATHER

Engine

1шт.

25

47131178

HYDRAULIC OIL FILTER

Powershift Hyd. Filter

1шт.

*

REF

INSTRUCTION

Oil, Engine Crankcase, No Filter Change, Case IH Akcela No. 1, 4.23 Gal (16 L)

1шт.

*

REF

INSTRUCTION

Oil, Engine Crankcase, With Filter Change, Case IH Akcela No. 1, 4.36 Gal (16.5 L)

1шт.

*

REF

INSTRUCTION

Transmission/Hydraulic Fluid, Powershift, Case IH Akcela Hy-Tran Ultraction, 22.5 Gal (85 L)

1шт.

*

REF

INSTRUCTION

Transmission/Hydraulic Fluid, CVT, Case IH Akcela Hy-Tran Ultraction, 26.4 Gal (100 L)

1шт.

*

135H EP 85W140

OIL

Case IH 4.0 Fixed Front Axle, Differential, 11.6 Qt (11 L)

1шт.

*

135H EP 85W140

OIL

Case IH 4.0 Fixed Front Axle, Planetary (Each), 2.4 Qt (2.3 L)

1шт.

*

135H EP 85W140

OIL

Case IH 4.75 Saddle Suspended Front Axle, Differential, 18.5 Qt (17.5 L)

1шт.

*

135H EP 85W140

OIL

Case IH 4.75 Saddle Suspended Front Axle, Planetary (Each), 4.5 Qt (4.3 L)

1шт.

*

REF

INSTRUCTION

Fuel Tank, 155 Gal (586.7 L)

1шт.

*

REF

INSTRUCTION

DEF/ADBLUE Tank 23.3 Gal ( 88.2 L)

1шт.

Выбрано товаров: 36
