Запчасти Case IH MAGNUM 220 (05.100.01[01]) - INITIAL STOCKING LIST "A" (ISL) (05) - SERVICE & MAINTENANCE

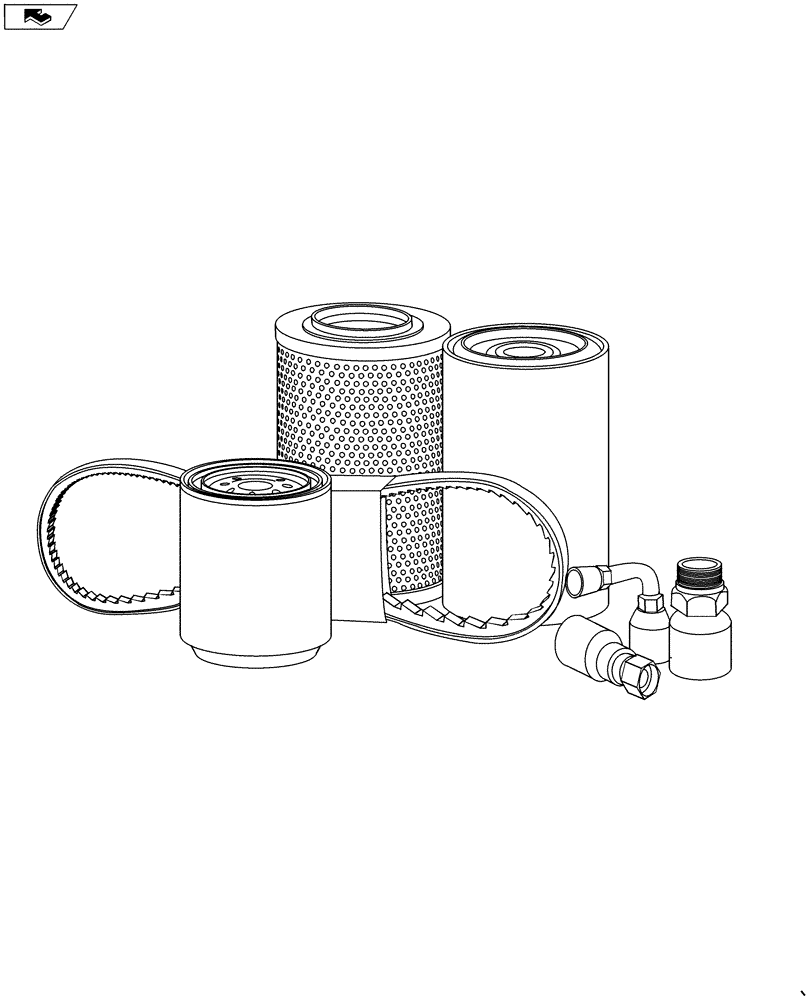

Схема запчастей Case IH MAGNUM 220 - (05.100.01[01]) - INITIAL STOCKING LIST "A" (ISL) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

336430A1

FUEL FILTER

Strainer, 30 Micron

1шт.

2

84197114

FILTER

Hydraulic Oil, High Pressure W/Check Valve

1шт.

3

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

4

84242244

FILTER ASSY

In-Line Suction

1шт.

5

84348875

FILTER ASSY

Assy, Incl Head, Sensor, and Filter Element

1шт.

6

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

High Water Separation PreFilter

1шт.

7

84367903

FILTER

Element, DEF/ADBLUE Line, Set of 200

1шт.

8

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Spin-On

1шт.

9

84579125

AIR FILTER

Engine, Primary

1шт.

10

84579126

AIR FILTER

Engine, Secondary

1шт.

11

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Charcoal

1шт.

12

87313049

FILTER ASSY

Hydraulic Oil, Suction

1шт.

13

87346728

FUEL FILTER

Water

1шт.

14

87684088

CAB FILTER,CAB

Cab, Foam

1шт.

15

87714123

FILTER

Filtration, 100-150 Micron

1шт.

16

47364243

FILTER

Kit, Denox Supply Module Main Filter

1шт.

17

47592426

BELT

A/C Compressor

1шт.

18

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

1шт.

Выбрано товаров: 18
