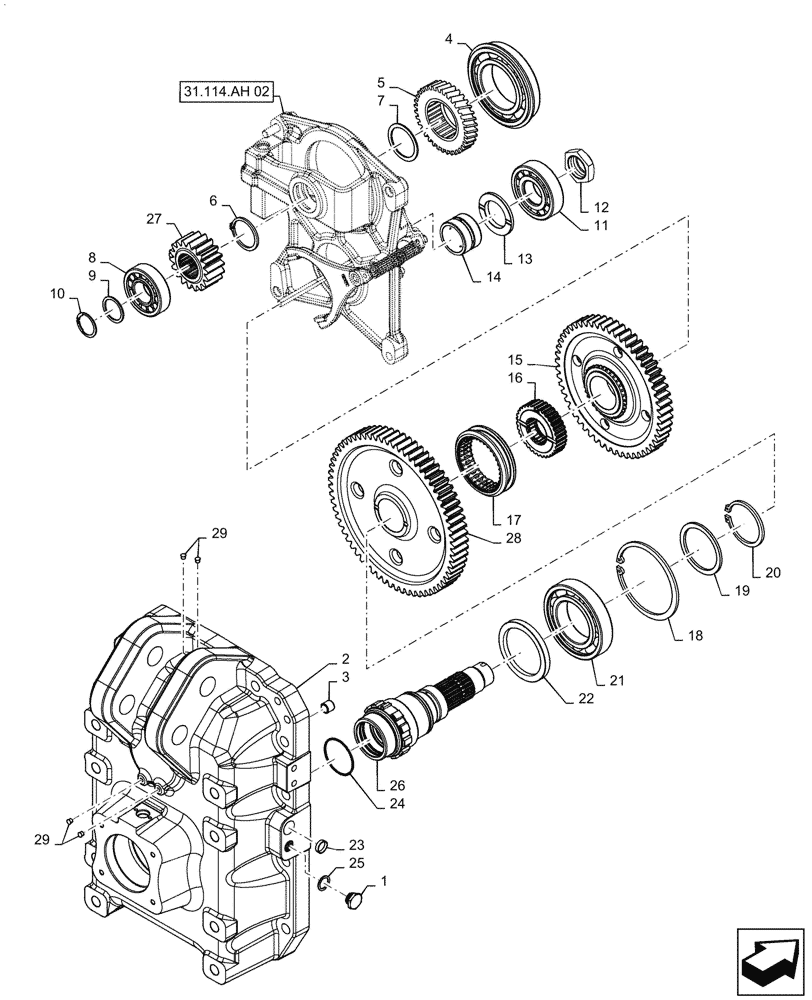

Запчасти Case IH MAGNUM 220 (31.114.AH[01]) - PTO GEAR HOUSING (31) - IMPLEMENT POWER TAKE OFF

1

10300814

PLUG,HEX, M18 x 1.5

1шт.

2

87576362

HOUSING

PTO

1шт.

3

44908048

BUSHING,16mm OD x 14mm L

2шт.

4

87707493

BEARING ASSY,75mm ID x 130mm OD x 25mm W

1шт.

5

87548135

DRIVING GEAR

PTO, 1000 RPM

1шт.

6

5138419

SNAP RING,M50

1шт.

7

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

1шт.

8

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

9

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

10

5154307

SNAP RING,M35

1шт.

11

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

12

5123114

RING NUT,Hex, M36 x 1.5

1шт.

13

5182629

ANTI-WRAP PLATE

1шт.

14

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

15

87605013

GEAR

1шт.

16

87578128

GEAR,21T Internal / 33T External

Fixed, PTO Control

1шт.

17

87578126

SLEEVE,Z12

Sliding, PTO Control

1шт.

18

11076176

SNAP RING,M125, Int

1шт.

19

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

1шт.

20

47132124

CIRCLIP,M70

1шт.

21

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

1шт.

22

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

23

14328701

PLUG,M20, Tapered

1шт.

24

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

25

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

26

47131841

SHAFT

PTO Drive

1шт.

27

5182638

GEAR

PTO Driving

1шт.

28

87600398

DRIVING GEAR

1шт.

29

353-421

PLUG,Dome, .187" hole, Nylon

Paint Protection

4шт.
