Запчасти Case IH MAGNUM 220 (23.314.AH[01]) - DRIVE SHAFT AND SHIELD, SADDLE SUSPENSION (23) - FOUR WHEEL DRIVE SYSTEM

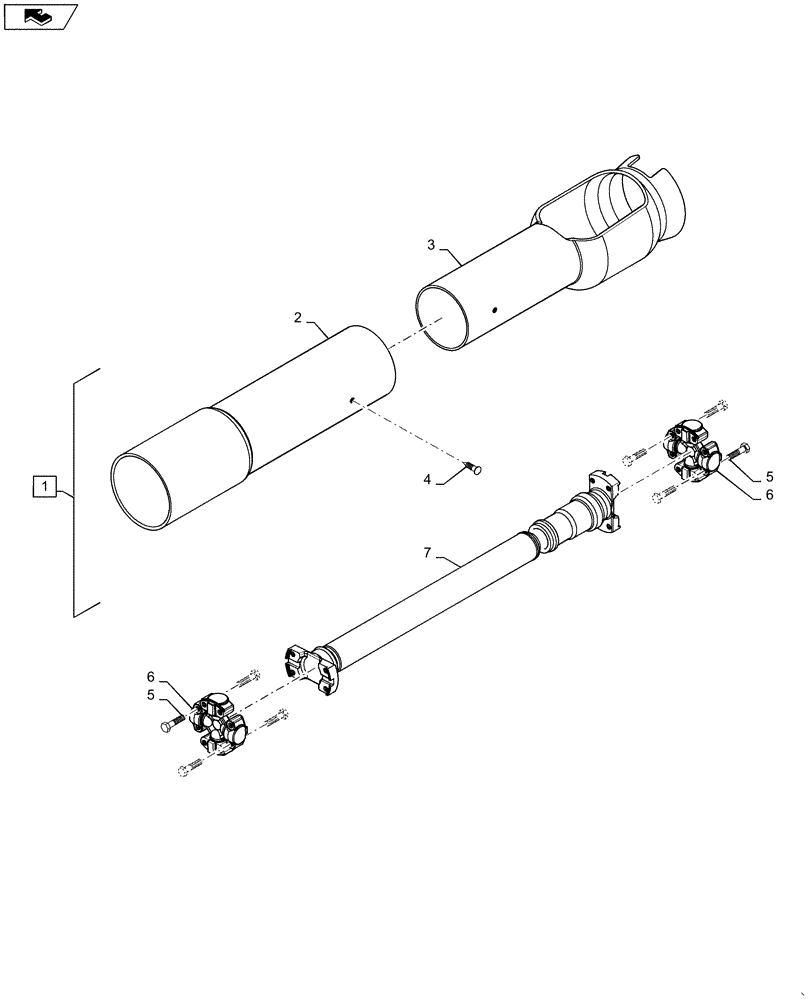

Схема запчастей Case IH MAGNUM 220 - (23.314.AH[01]) - DRIVE SHAFT AND SHIELD, SADDLE SUSPENSION (23) - FOUR WHEEL DRIVE SYSTEM
5
5
1
4
3
6
7
2
6

Артикул

Название

Примечание

Количество

1

84570896

SHIELD

Assy, Driveshaft, Saddle Suspension, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

SHIELD Rear, Driveguard Outer, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

SHIELD Front, Incl in 1

1шт.

4

93199C1

FASTENER

Ratchet

2шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

6

258854A2

U-JOINT SPIDER

5C

2шт.

7

47487719

DRIVE SHAFT

5C, MFD Saddle Suspension

1шт.

Выбрано товаров: 7
